Levelling foot MASSIV Steel, Ø 120 mm, M20 x 200 mm, yellow
EAN
4061408102969
Type
45811402
The MASSIV Steel leveling foot, with a robust diameter of 120 mm and a galvanized finish, ensures stability and precision. It supports a static load of 45,000 N, featuring a 10° articulated screw for adaptable leveling.
| Quantity | Price |
|---|---|
| From 1 |
€32.79*
|
| From 5 |
€31.39*
|
| From 15 |
€30.40*
|
| From 50 |
€30.00*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |

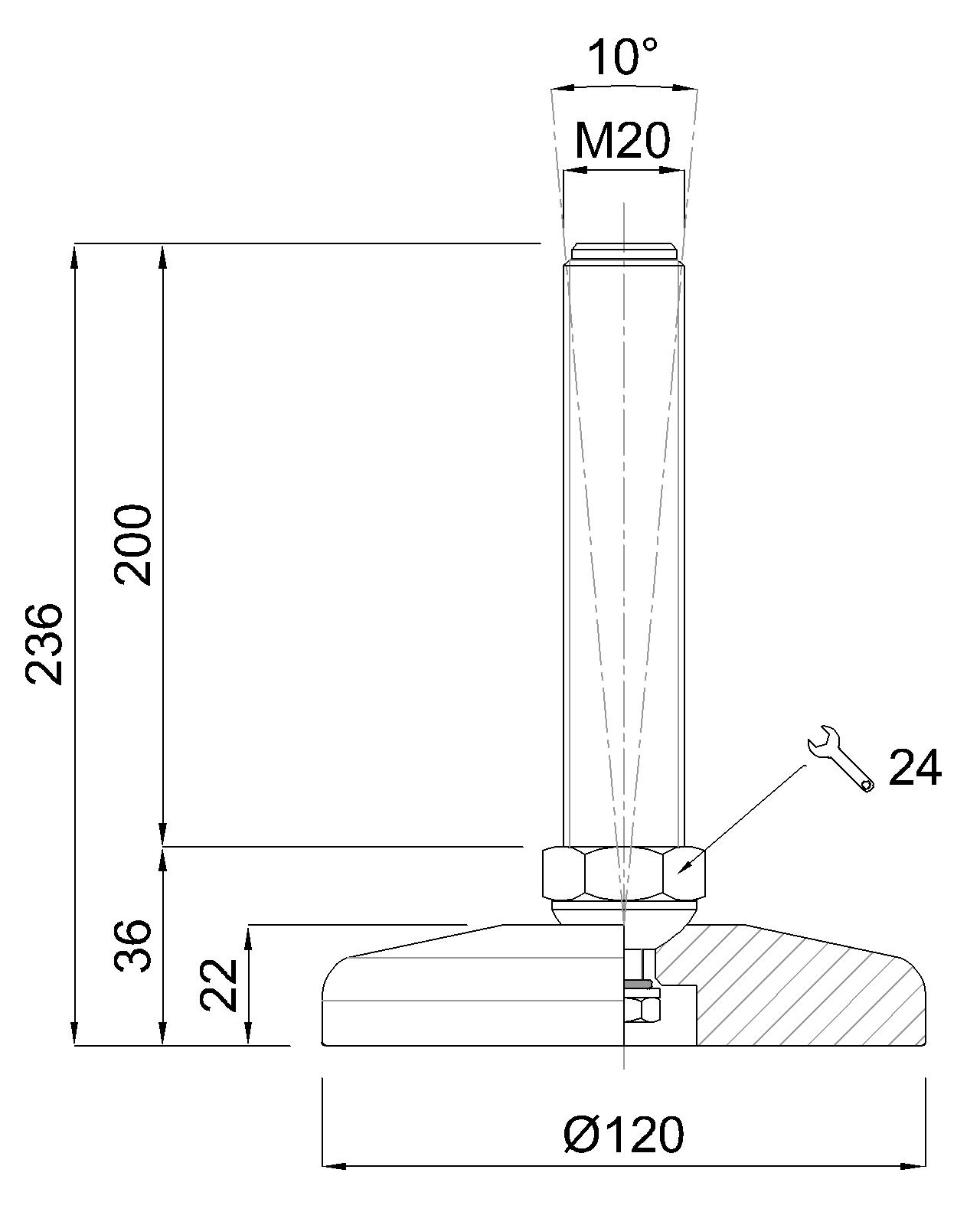

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M20 x 200 mm, Galvanized steel, Total height 236 mm, Articulated screw 10°, yellow painted, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
