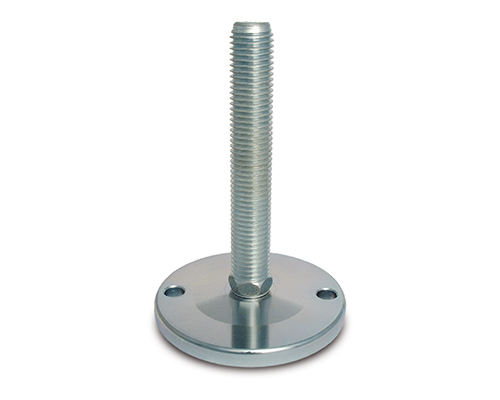

Levelling foot MASSIV Steel, Ø 150 mm, M24 x 150 mm, Drills
Discover the MASSIV Steel Levelling Foot, designed for stability in demanding applications. With a robust 150 mm diameter, adjustable height, and a static load capacity of 50,000 N, it ensures precision and durability.
| Quantity | Price |
|---|---|
| From 1 |
€31.58*
|
| From 5 |
€30.24*
|
| From 15 |
€29.28*
|
| From 50 |
€28.90*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
