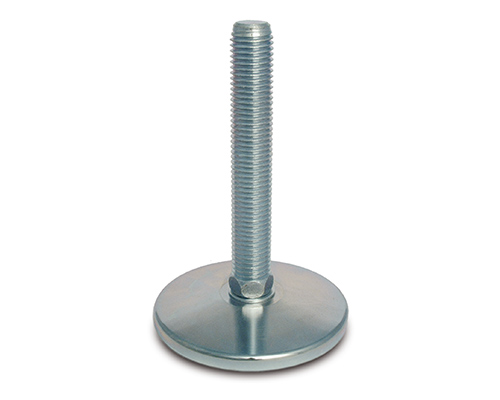

Levelling foot MASSIV Steel, Ø 150 mm, M30 x 225 mm, NBR
EAN
4061408096473
Type
45815455/G
The MASSIV Steel leveling foot offers exceptional stability with a Ø 150 mm footprint and M30 x 225 mm threaded spindle, supporting static loads up to 55,000 N. Its galvanized finish and NBR anti-slip material ensure durability and safety.
| Quantity | Price |
|---|---|
| From 1 |
€40.44*
|
| From 5 |
€38.73*
|
| From 15 |
€37.50*
|
| From 50 |
€37.01*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 150 mm, M30 x 225 mm, Galvanized steel, Total height 254 mm, Articulated screw 5°, Antislip NBR black, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
