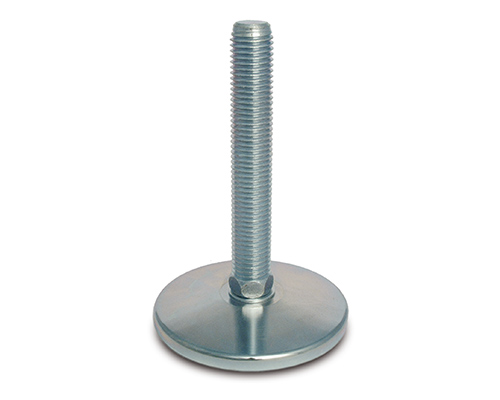

Levelling foot MASSIV Steel, Ø 150 mm, M30 x 125 mm
EAN
4061408096428
Type
45815453
Introducing the MASSIV Steel Levelling Foot: engineered for robust applications with a 150 mm diameter and a static load capacity of 55,000 N. Galvanized for durability, its articulated design allows for a 5° adjustment, ensuring precision in leveling even in challenging environments. Perfect for engineers and manufacturers seeking reliable support solutions.
| Quantity | Price |
|---|---|
| From 1 |
€31.65*
|
| From 5 |
€30.30*
|
| From 15 |
€29.35*
|
| From 50 |
€28.96*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 150 mm, M30 x 125 mm, Galvanized steel, Total height 151 mm, Articulated screw 5°, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
