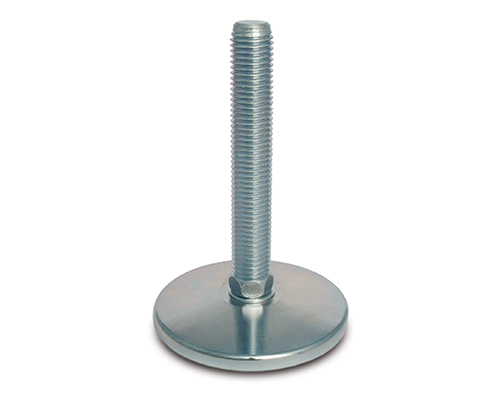

Levelling foot MASSIV Steel, Ø 150 mm, M24 x 150 mm
EAN
4061408096381
Type
45815451
Introducing the MASSIV Steel leveling foot: engineered for precision with a 150 mm diameter and 50,000 N static load capacity. Its galvanized finish and 5° articulated screw ensure durability and adaptability for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€30.72*
|
| From 5 |
€29.42*
|
| From 15 |
€28.49*
|
| From 50 |
€28.12*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
| Hygiene: | No |

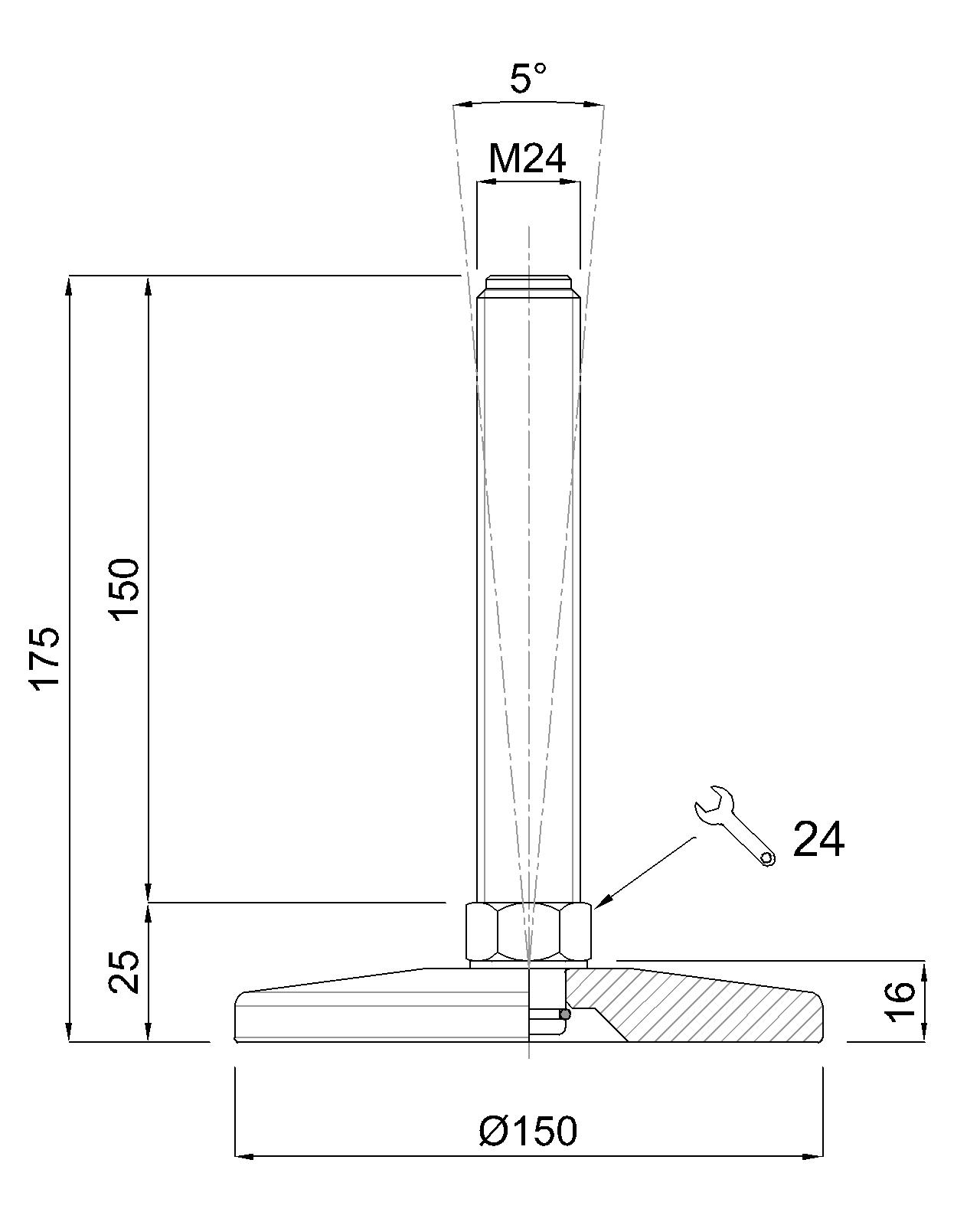

Technical drawing
Levelling foot MASSIV Steel, Ø 150 mm, M24 x 150 mm, Galvanized steel, Total height 175 mm, Articulated screw 5°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
