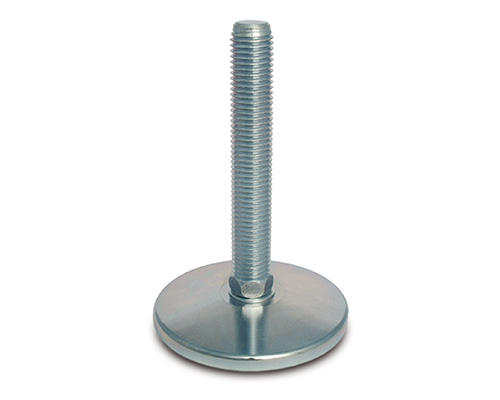

Levelling foot MASSIV Steel, Ø 150 mm, M20 x 200 mm, NBR
EAN
4061408096350
Type
45815449/G
Discover the MASSIV Steel Levelling Foot, designed for stability with a 150 mm diameter and a robust static load capacity of 45,000 N. Features include a 5° articulated screw and non-slip NBR surface for versatile applications.
| Quantity | Price |
|---|---|
| From 1 |
€35.34*
|
| From 5 |
€33.84*
|
| From 15 |
€32.77*
|
| From 50 |
€32.34*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 150 mm, M20 x 200 mm, Galvanized steel, Total height 228 mm, Articulated screw 5°, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
