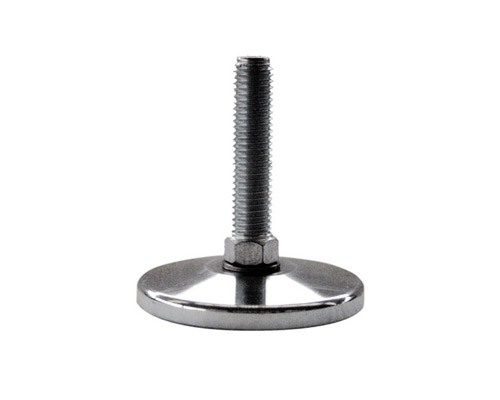

Levelling foot MASSIV Steel, Ø 40 mm, M8 x 50 mm, NBR
Discover the MASSIV Steel Levelling Foot, designed for stability with a 40 mm diameter and an articulated screw for precise adjustments. Supports up to 8,000 N static load, featuring durable NBR anti-slip material.
| Quantity | Price |
|---|---|
| From 1 |
€6.80*
|
| From 5 |
€6.51*
|
| From 15 |
€6.30*
|
| From 50 |
€6.22*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Steel |
| Ø spindle (mm): | 8 |
| Spindle length (mm): | 50 |
| Balancing angle: | 3° |

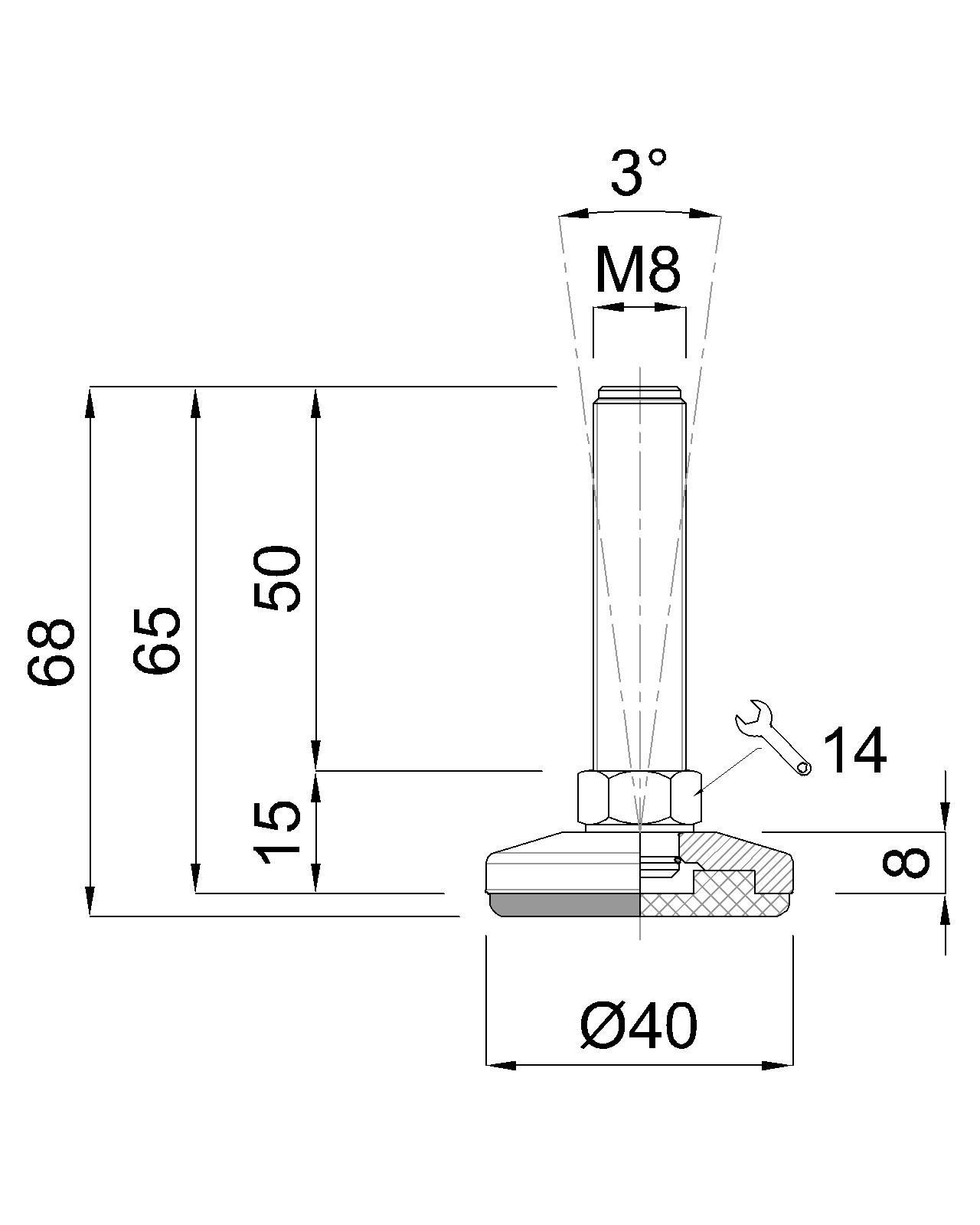

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
