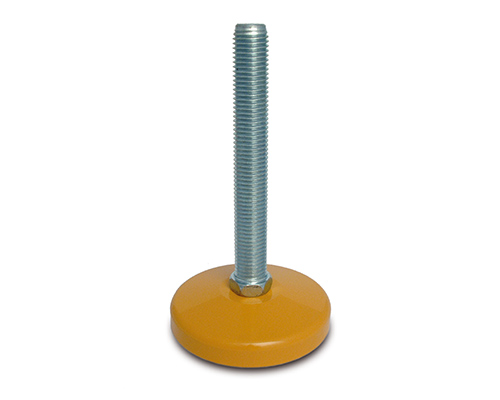

Levelling foot MASSIV Steel, Ø 100 mm, M24 x 250 mm, yellow, NBR
EAN
4061408092444
Type
45811711
The MASSIV Steel leveling foot features a robust 100 mm diameter design and a static load capacity of 45,000 N, ensuring exceptional stability for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€29.11*
|
| From 5 |
€27.87*
|
| From 15 |
€26.99*
|
| From 50 |
€26.64*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |
Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M24 x 250 mm, Galvanized steel, Total height 283 mm, yellow painted, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
