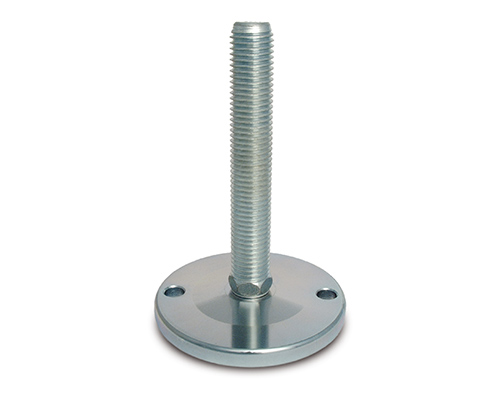

Levelling foot MASSIV Steel, Ø 100 mm, M24 x 200 mm, Drills, NBR
EAN
4061408091560
Type
45815517/G
Optimize your projects with our MASSIV Steel Levelling Foot. Designed for precision, it features a 100 mm diameter, M24 x 200 mm spindle, and withstands static loads of 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€22.89*
|
| From 5 |
€21.91*
|
| From 15 |
€21.22*
|
| From 50 |
€20.94*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M24 x 200 mm, Galvanized steel, Total height 228 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
