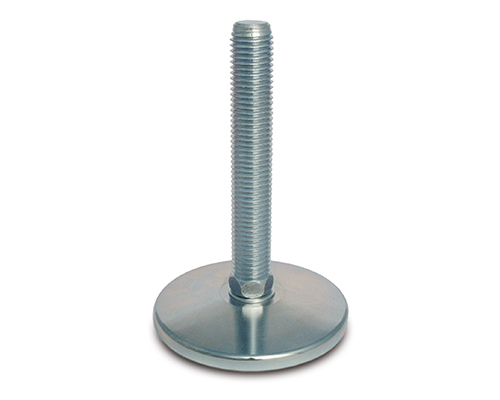

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 100 mm
EAN
4061408091263
Type
45815435
Discover our MASSIV Steel levelling foot, designed for robust support with a 120 mm diameter and M16 x 100 mm spindle. Featuring a galvanized finish, it offers a static load capacity of 35,000 N and an articulated screw adjustment of 5°. Ideal for industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€15.87*
|
| From 5 |
€15.20*
|
| From 15 |
€14.72*
|
| From 50 |
€14.53*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M16 x 100 mm, Galvanized steel, Total height 125 mm, Articulated screw 5°, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
