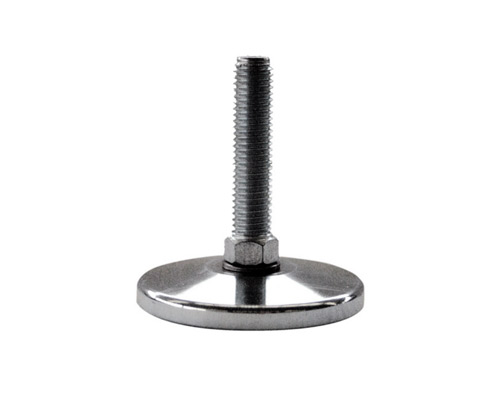

Levelling foot MASSIV Steel, Ø 65 mm, M12 x 125 mm, NBR
EAN
4061408090716
Type
45815409/G
Introducing the MASSIV Steel Levelling Foot: engineered for stability with a 65 mm diameter, adjustable height of 147 mm, and a robust static load capacity of 18,000 N. Ideal for diverse applications.
| Quantity | Price |
|---|---|
| From 1 |
€11.68*
|
| From 5 |
€11.19*
|
| From 15 |
€10.83*
|
| From 50 |
€10.69*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M12 x 125 mm, Galvanized steel, Total height 147 mm, Articulated screw 5°, Antislip NBR black, Static load 18.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
