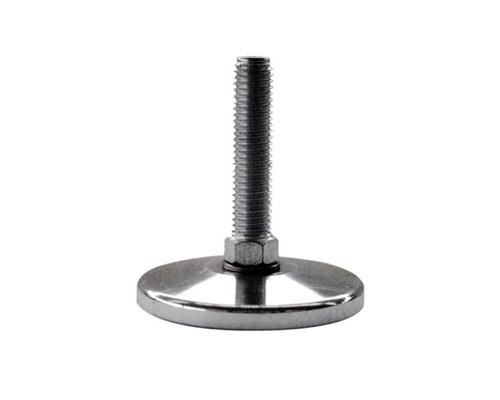

Levelling foot MASSIV Steel, Ø 65 mm, M12 x 100 mm, NBR
Introducing the MASSIV Steel Levelling Foot: engineered for stability with a 65 mm diameter, capable of supporting static loads up to 18,000 N. Its articulated screw allows for a 5° adjustment, ensuring precise leveling, while the durable NBR anti-slip surface enhances grip for secure application. Ideal for engineers and manufacturers seeking reliability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€10.58*
|
| From 5 |
€10.13*
|
| From 15 |
€9.81*
|
| From 50 |
€9.68*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

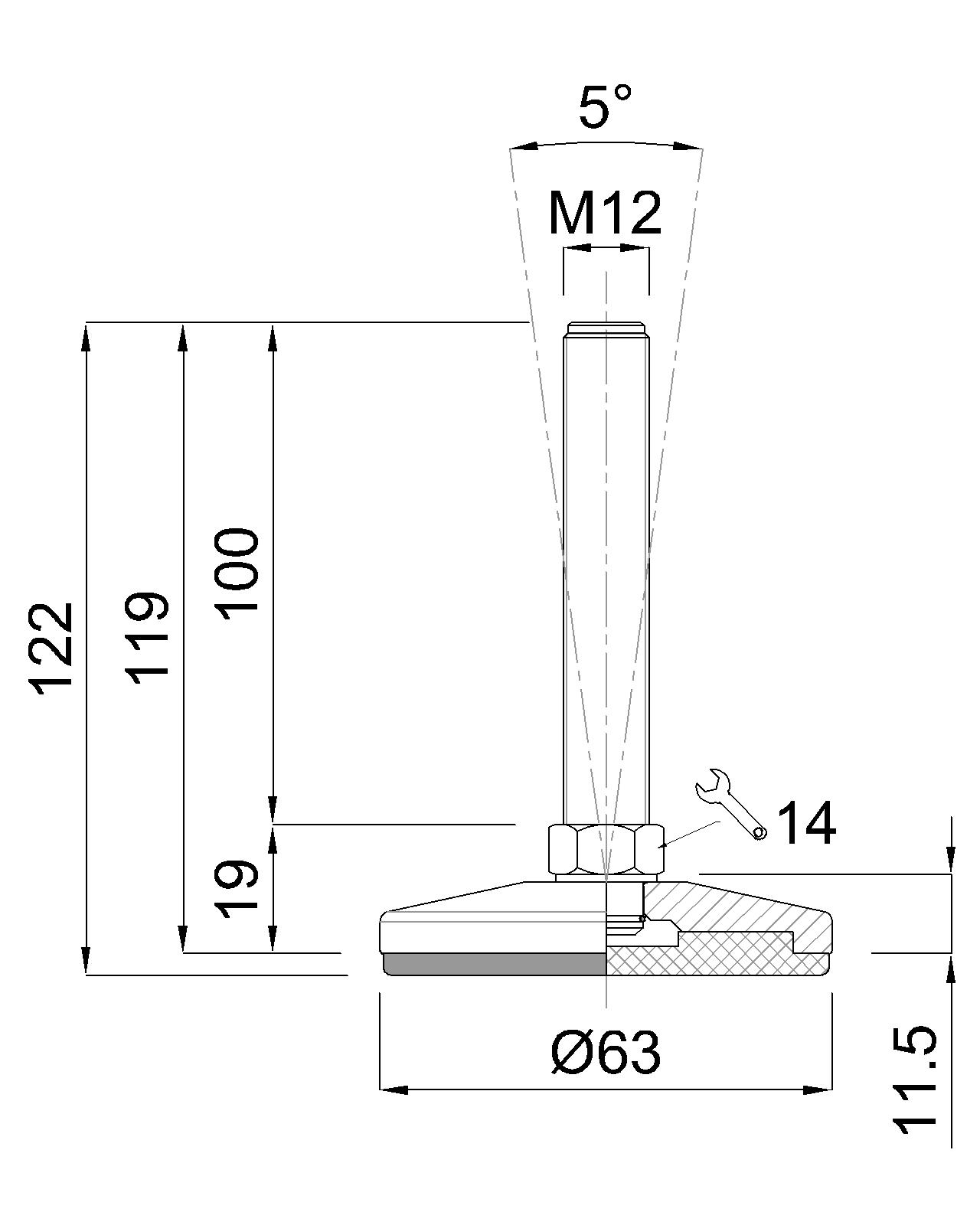

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
