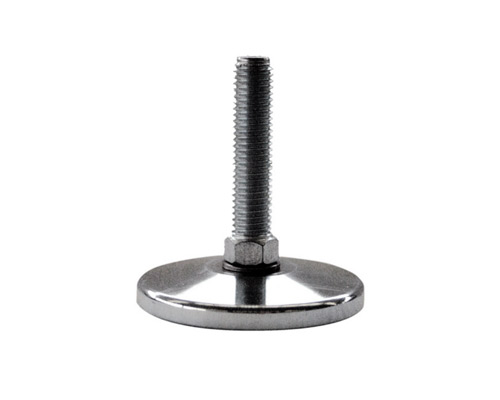

Levelling foot MASSIV Steel, Ø 65 mm, M12 x 100 mm
EAN
4061408090686
Type
45815408
Discover the MASSIV Steel Levelling Foot, engineered for precision support with a robust 65 mm diameter and M12 x 100 mm galvanized steel construction. It withstands static loads up to 18,000 N and features a 5° articulated screw for optimal stability. Perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.67*
|
| From 5 |
€9.26*
|
| From 15 |
€8.97*
|
| From 50 |
€8.85*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M12 x 100 mm, Galvanized steel, Total height 119 mm, Articulated screw 5°, Static load 18.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
