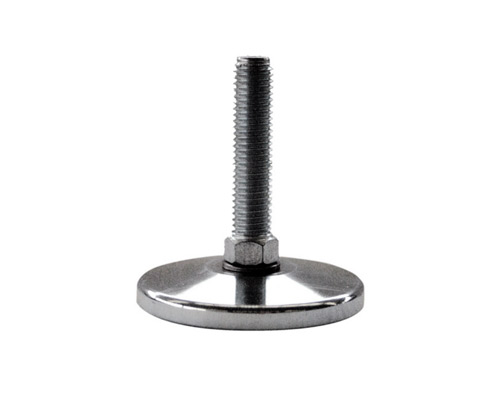

Levelling foot MASSIV Steel, Ø 50 mm, M14 x 50 mm, NBR
Introducing the MASSIV Steel leveling foot, designed for precision engineering applications. With a robust load capacity of 15,000 N, it features a 5° articulated screw and durable NBR anti-slip. Ensure stability with its 50 mm diameter and galvanized steel construction.
| Quantity | Price |
|---|---|
| From 1 |
€7.80*
|
| From 5 |
€7.47*
|
| From 15 |
€7.24*
|
| From 50 |
€7.14*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |

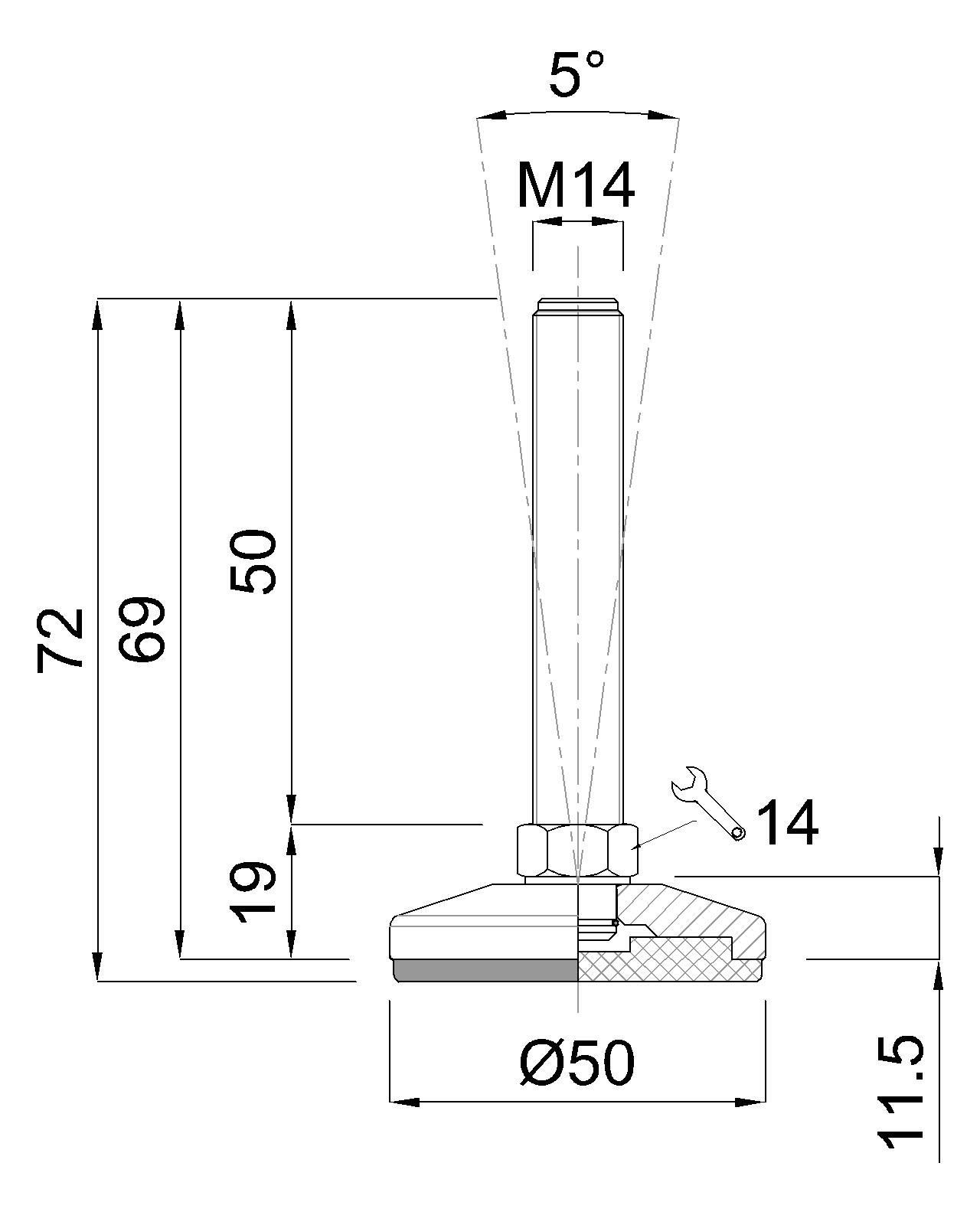

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
