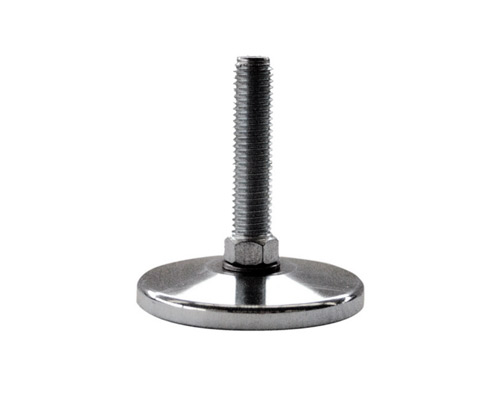

Levelling foot MASSIV Steel, Ø 50 mm, M12 x 50 mm, NBR
EAN
4061408090525
Type
45815402/G
Introducing the MASSIV Steel Levelling Foot: Designed for precision stability, this 50 mm diameter foot features a robust M12 x 50 mm galvanized steel spindle, capable of supporting static loads up to 15,000 N, with a 5° articulated screw for optimal adjustment. Equipped with a non-slip NBR base, it ensures reliable performance in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.46*
|
| From 5 |
€8.11*
|
| From 15 |
€7.85*
|
| From 50 |
€7.75*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M12 x 50 mm, Galvanized steel, Total height 72 mm, Articulated screw 5°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
