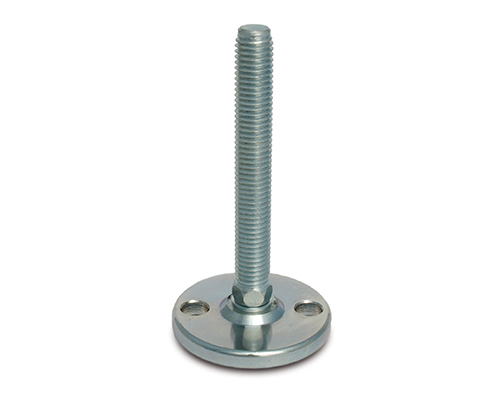

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 100 mm, Drills, NBR
EAN
4061408089291
Type
45815489/G
Enhance stability with our MASSIV Steel Levelling Foot. Featuring a 65 mm diameter and 100 mm threaded length, it supports static loads of up to 18,000 N with precision.
| Quantity | Price |
|---|---|
| From 1 |
€12.46*
|
| From 5 |
€11.93*
|
| From 15 |
€11.55*
|
| From 50 |
€11.40*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 100 mm, Galvanized steel, Total height 122 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Antislip NBR black, Static load 18.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
