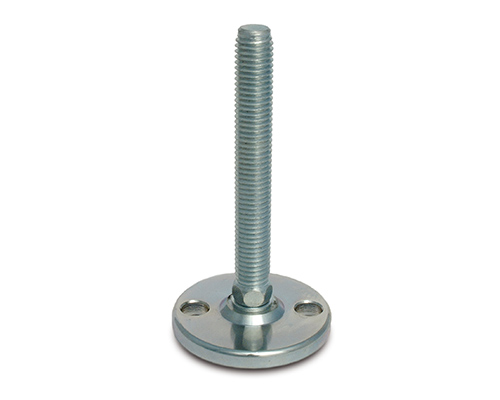

Levelling foot MASSIV Steel, Ø 65 mm, M12 x 50 mm, Drills
EAN
4061408089178
Type
45815482
The MASSIV Steel Levelling Foot ensures stability with a robust design, featuring a 65 mm diameter base, M12 x 50 mm spindle, and 18,000 N static load capacity for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.57*
|
| From 5 |
€9.16*
|
| From 15 |
€8.87*
|
| From 50 |
€8.76*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M12 x 50 mm, Galvanized steel, Total height 69 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Static load 18.000 N
