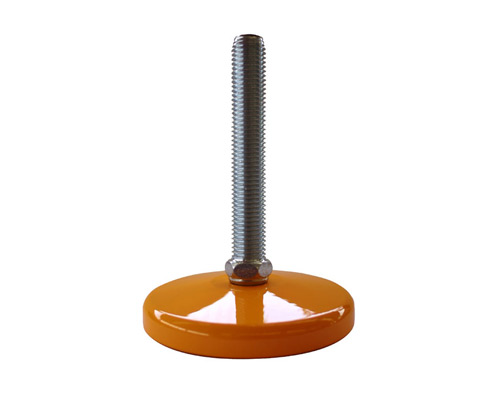

Levelling foot MASSIV Steel, Ø 120 mm, M30 x 150 mm, yellow
The MASSIV Steel Levelling Foot features a robust 120 mm diameter, M30 x 150 mm threaded spindle, and can support static loads up to 60,000 N, ensuring stability and precision in your applications.
| Quantity | Price |
|---|---|
| From 1 |
€33.31*
|
| From 5 |
€31.90*
|
| From 15 |
€30.89*
|
| From 50 |
€30.49*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

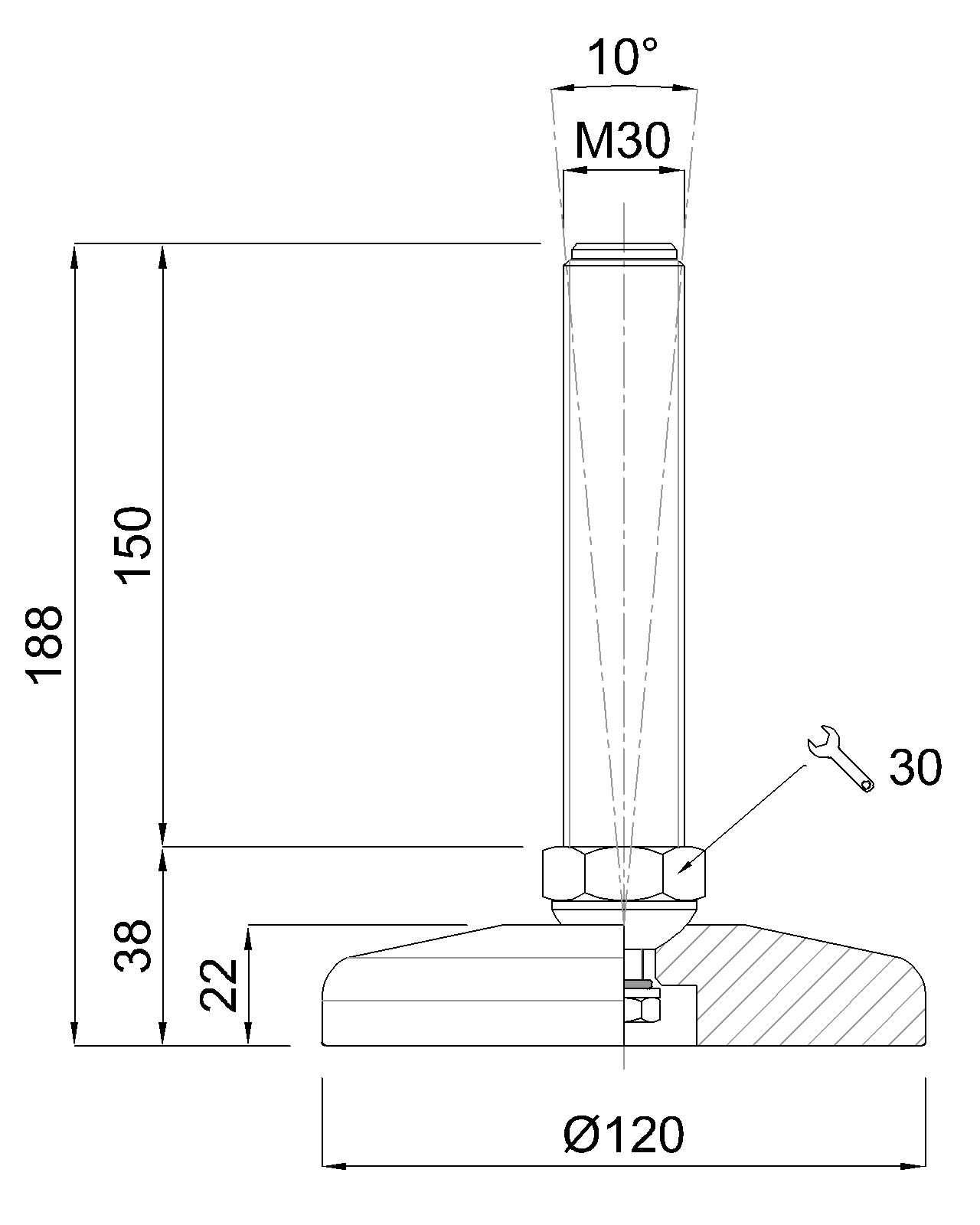

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
