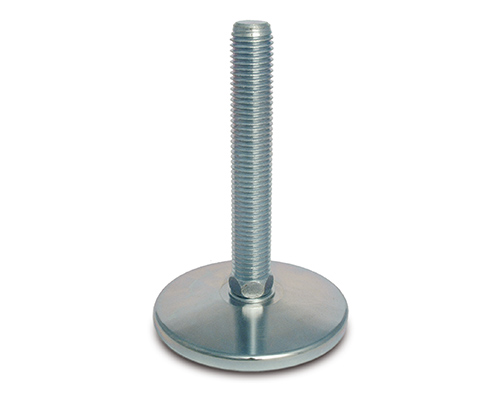

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 200 mm
Introducing the MASSIV Steel Levelling Foot: a robust solution with a 120 mm diameter for precise stability. Featuring a galvanized steel finish and an articulated screw for adjustments up to 5°, it supports static loads of 45,000 N, ideal for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€19.85*
|
| From 5 |
€19.01*
|
| From 15 |
€18.41*
|
| From 50 |
€18.17*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |
| Hygiene: | No |

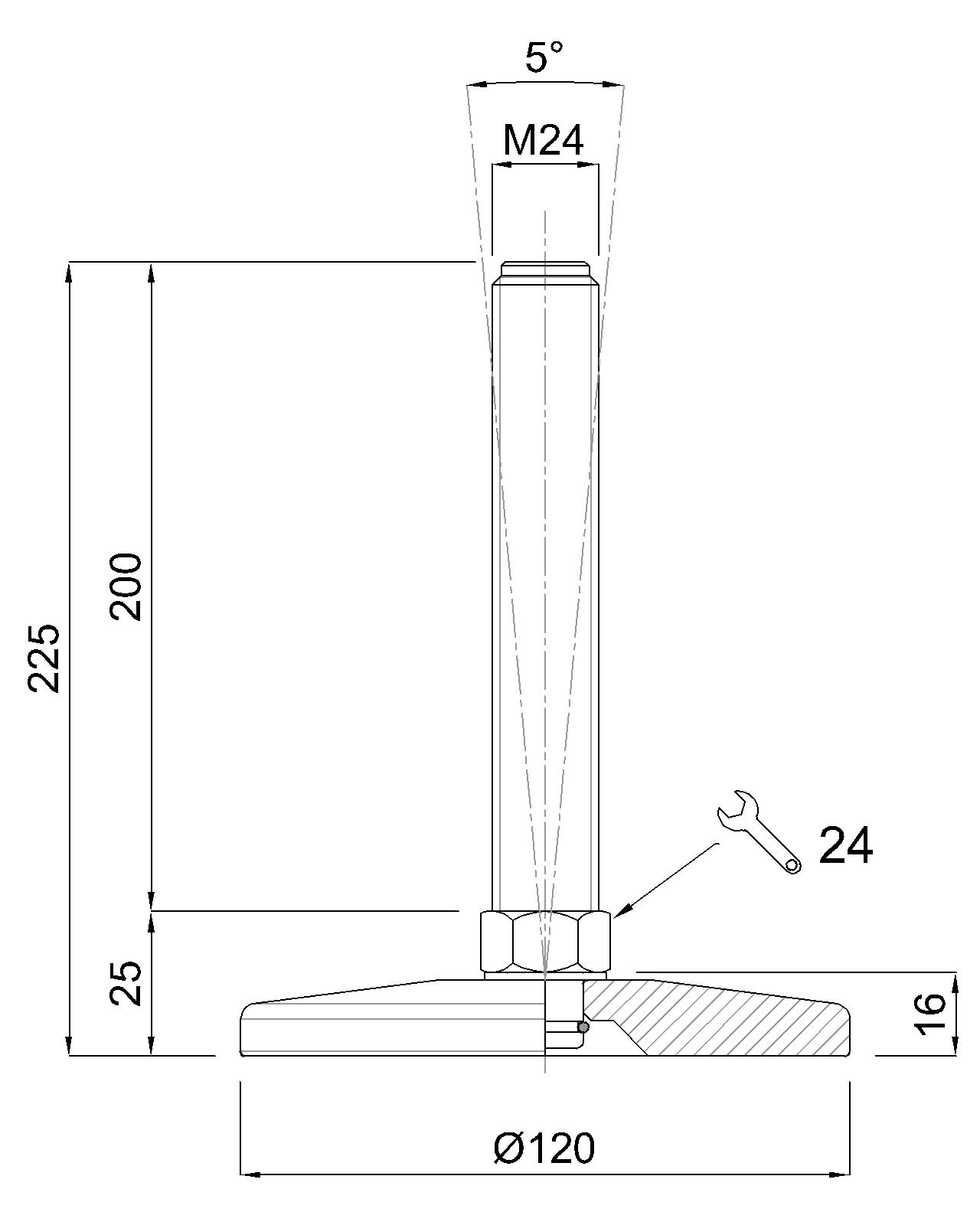

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
