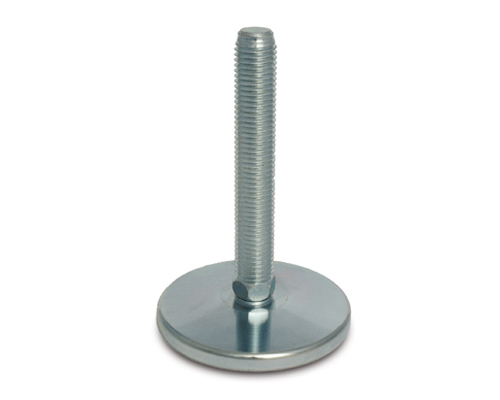

Levelling foot MASSIV Steel, Ø 80 mm, M20 x 175 mm, NBR
EAN
4061408086108
Type
45815421/G
Enhance stability with the MASSIV Steel Levelling Foot. Designed for high static loads up to 25,000 N, featuring a galvanized steel construction, articulated screw, and non-slip NBR rubber for optimal performance.
| Quantity | Price |
|---|---|
| From 1 |
€17.21*
|
| From 5 |
€16.48*
|
| From 15 |
€15.96*
|
| From 50 |
€15.75*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 175 mm, Galvanized steel, Total height 197 mm, Articulated screw 5°, Antislip NBR black, Static load 25.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
