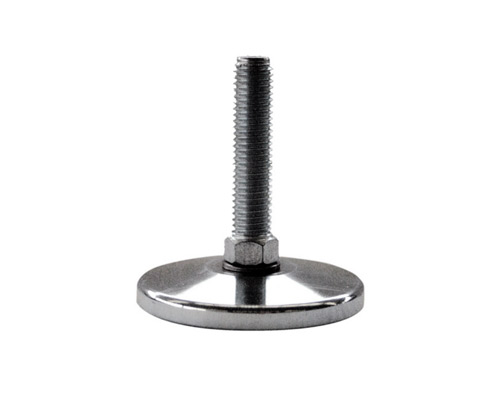

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, NBR
EAN
4061408084722
Type
45815410/16/G
Discover the MASSIV Steel leveling foot, designed for optimal stability with a 65 mm diameter and a load capacity of 18,000 N. Its articulating design ensures precise adjustments up to 5°, while the durable NBR material provides superior anti-slip performance. Perfect for robust engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.94*
|
| From 5 |
€10.48*
|
| From 15 |
€10.14*
|
| From 50 |
€10.01*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, Galvanized steel, Total height 72 mm, Articulated screw 5°, Antislip NBR black, Static load 18.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
