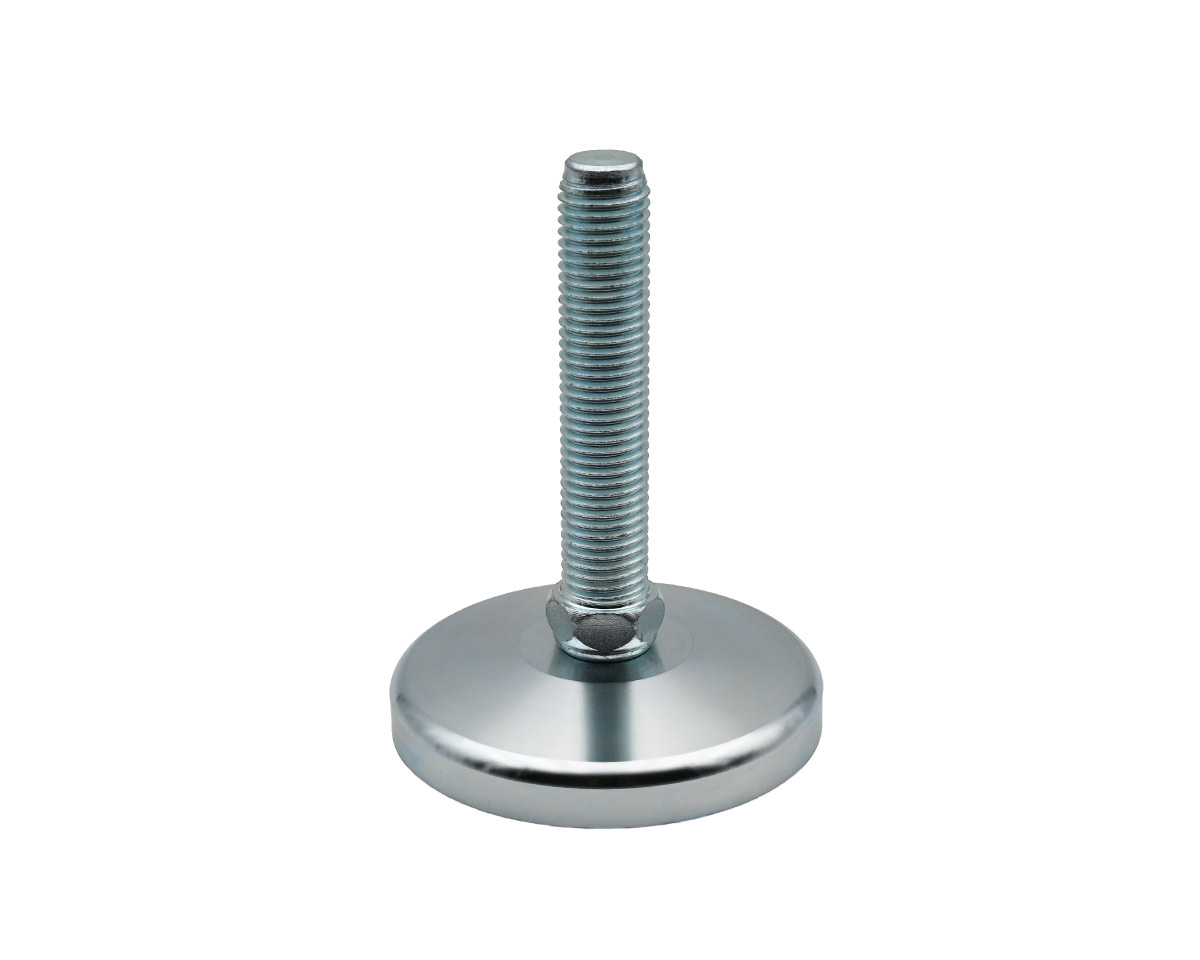

Levelling foot MASSIV Steel, Ø 100 mm, M30 x 225 mm
EAN
4061408082650
Type
45811380/30
Discover the MASSIV Steel Levelling Foot, designed for robust applications. With a 100 mm diameter and a static load capacity of 50,000 N, it offers exceptional stability and versatility for engineers and manufacturers.
| Quantity | Price |
|---|---|
| From 1 |
€29.78*
|
| From 5 |
€28.52*
|
| From 15 |
€27.62*
|
| From 50 |
€27.26*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
| Hygiene: | No |

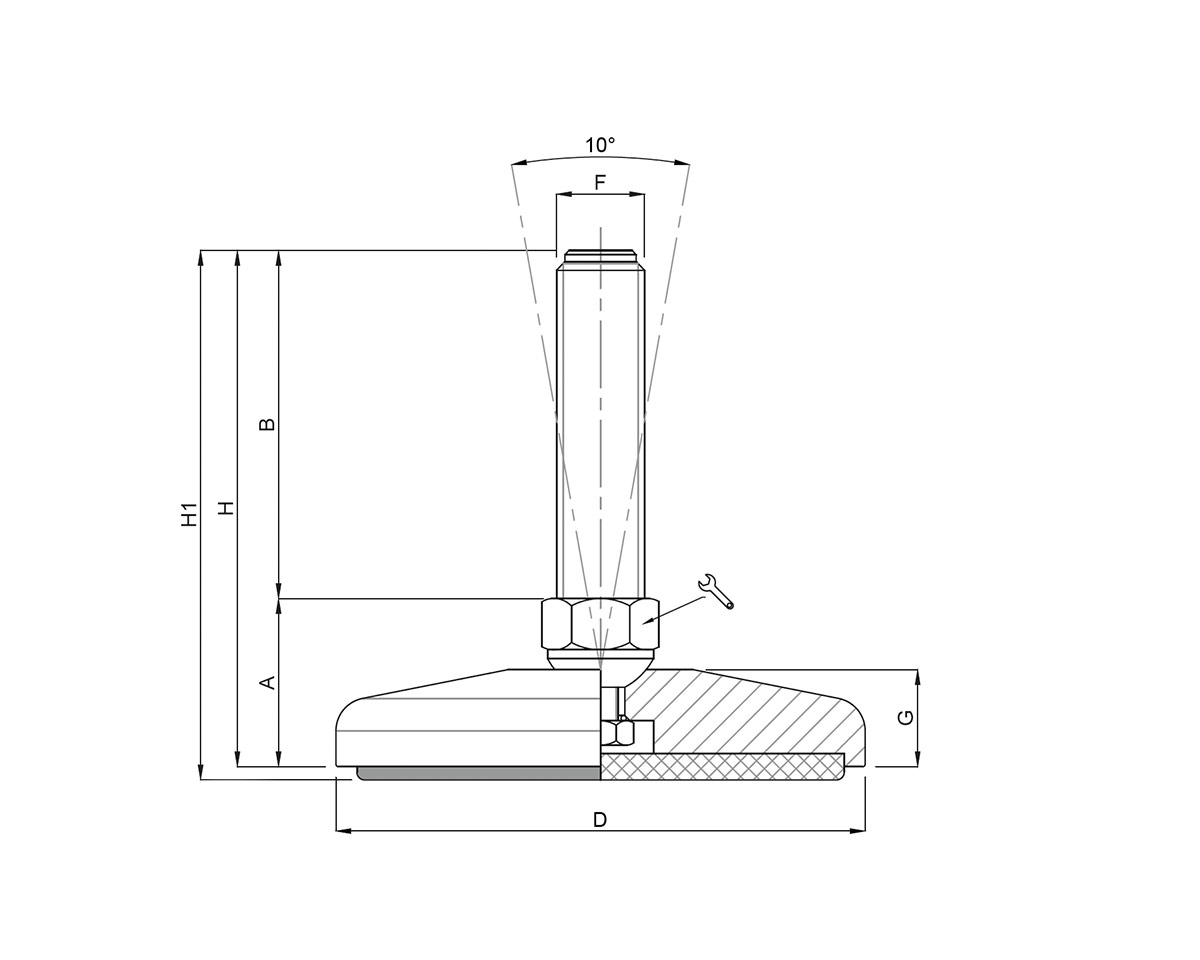

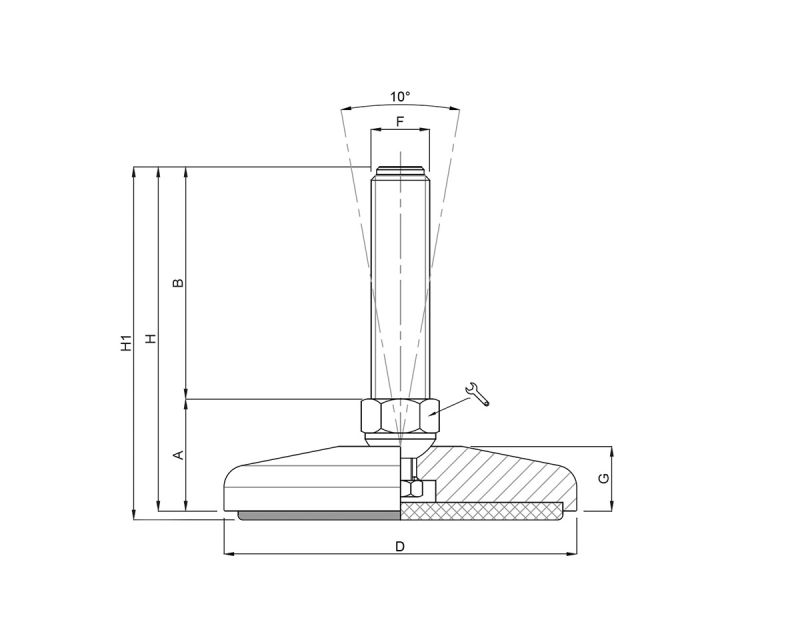

Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M30 x 225 mm, Galvanized steel, Total height 261 mm, Articulated screw 10°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
