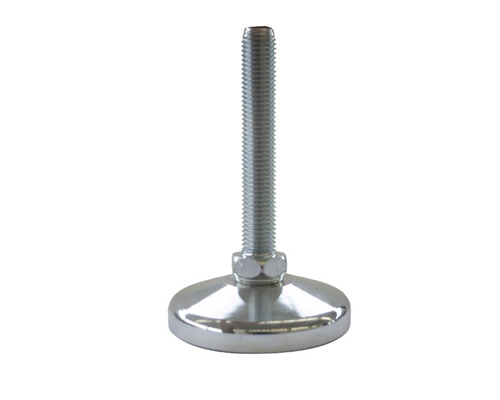

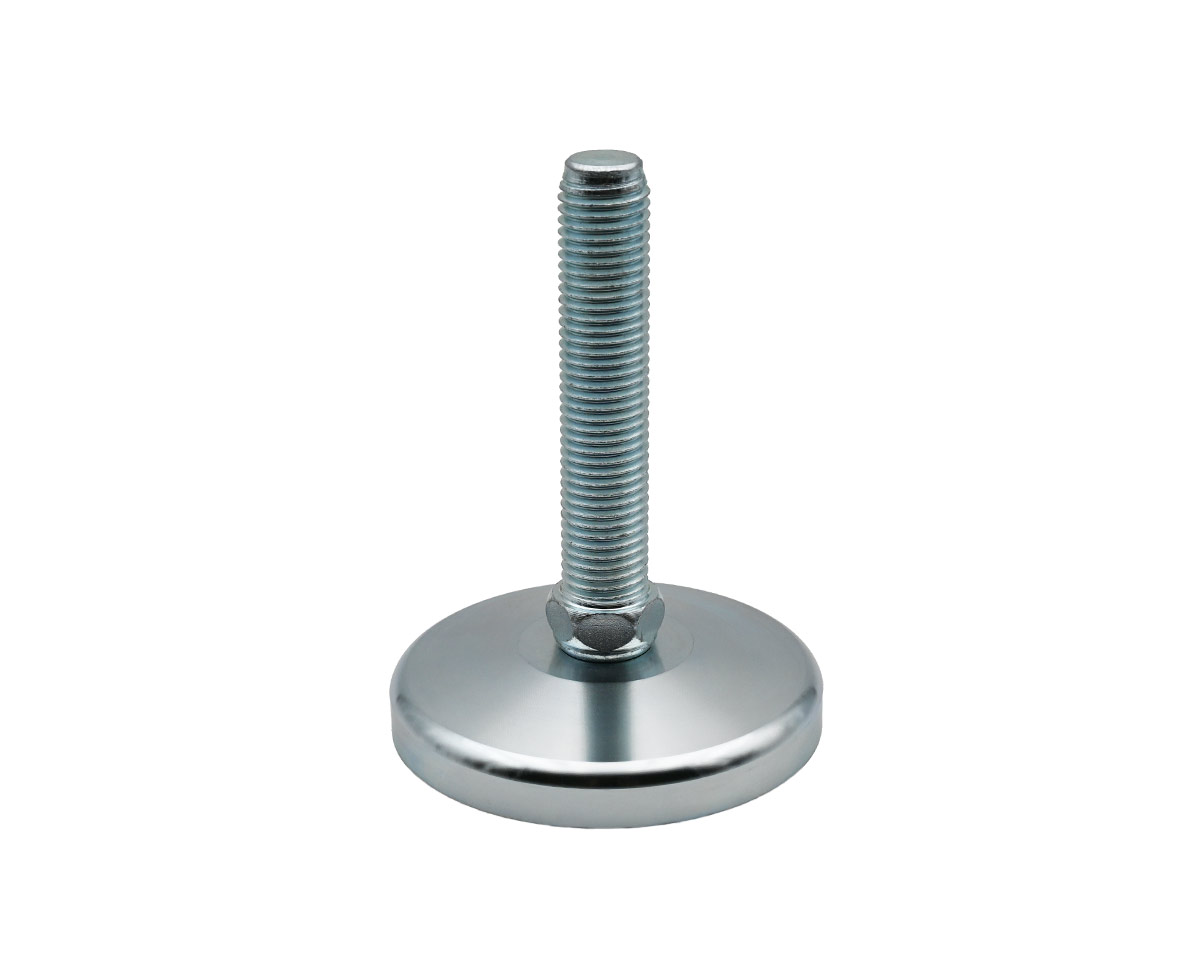

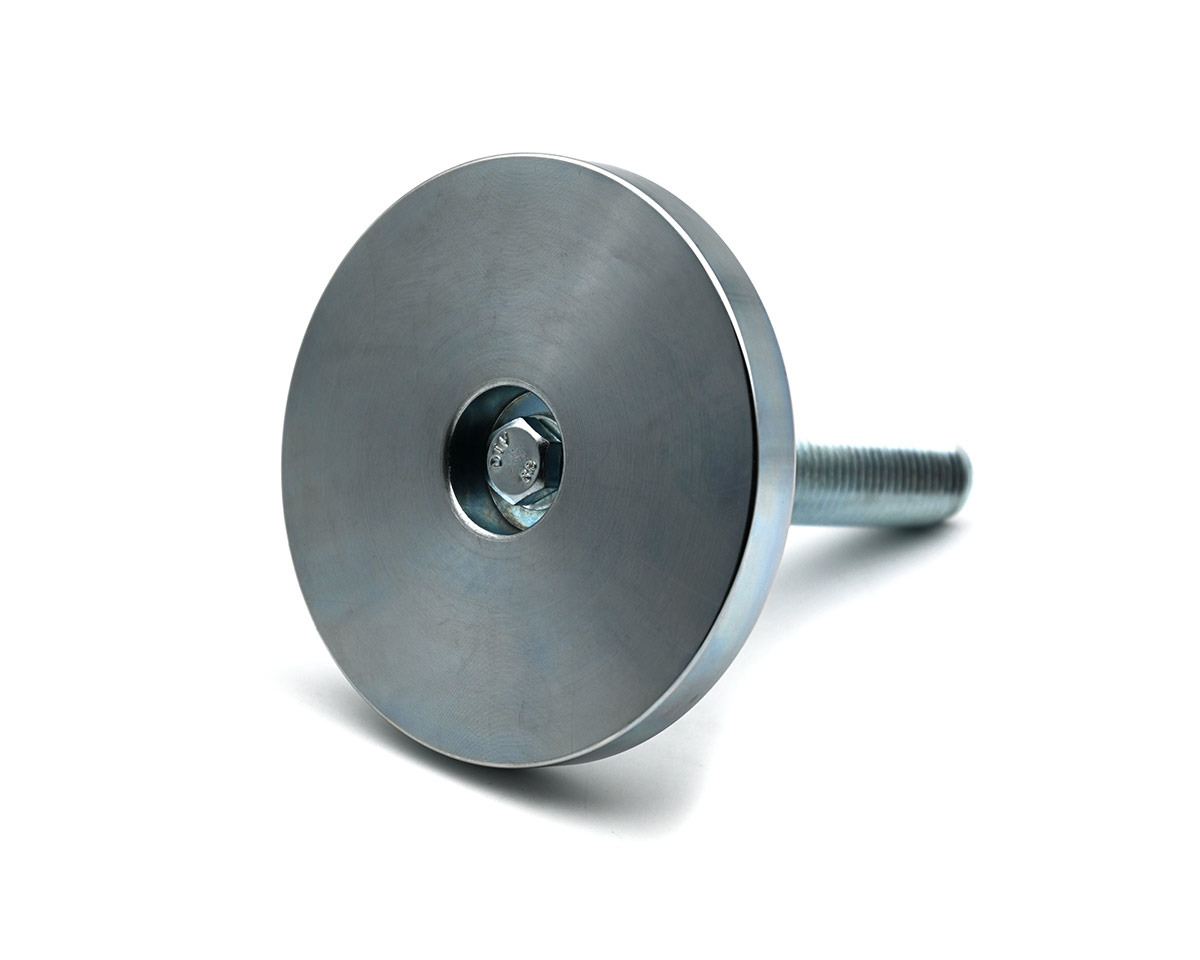

Levelling foot MASSIV Steel, Ø 100 mm, M20 x 200 mm
Discover the MASSIV Steel Levelling Foot, featuring a robust design with a 100 mm diameter and an adjustable articulated screw for precise leveling. Capable of supporting static loads up to 40,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€28.03*
|
| From 5 |
€26.84*
|
| From 15 |
€25.99*
|
| From 50 |
€25.65*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |

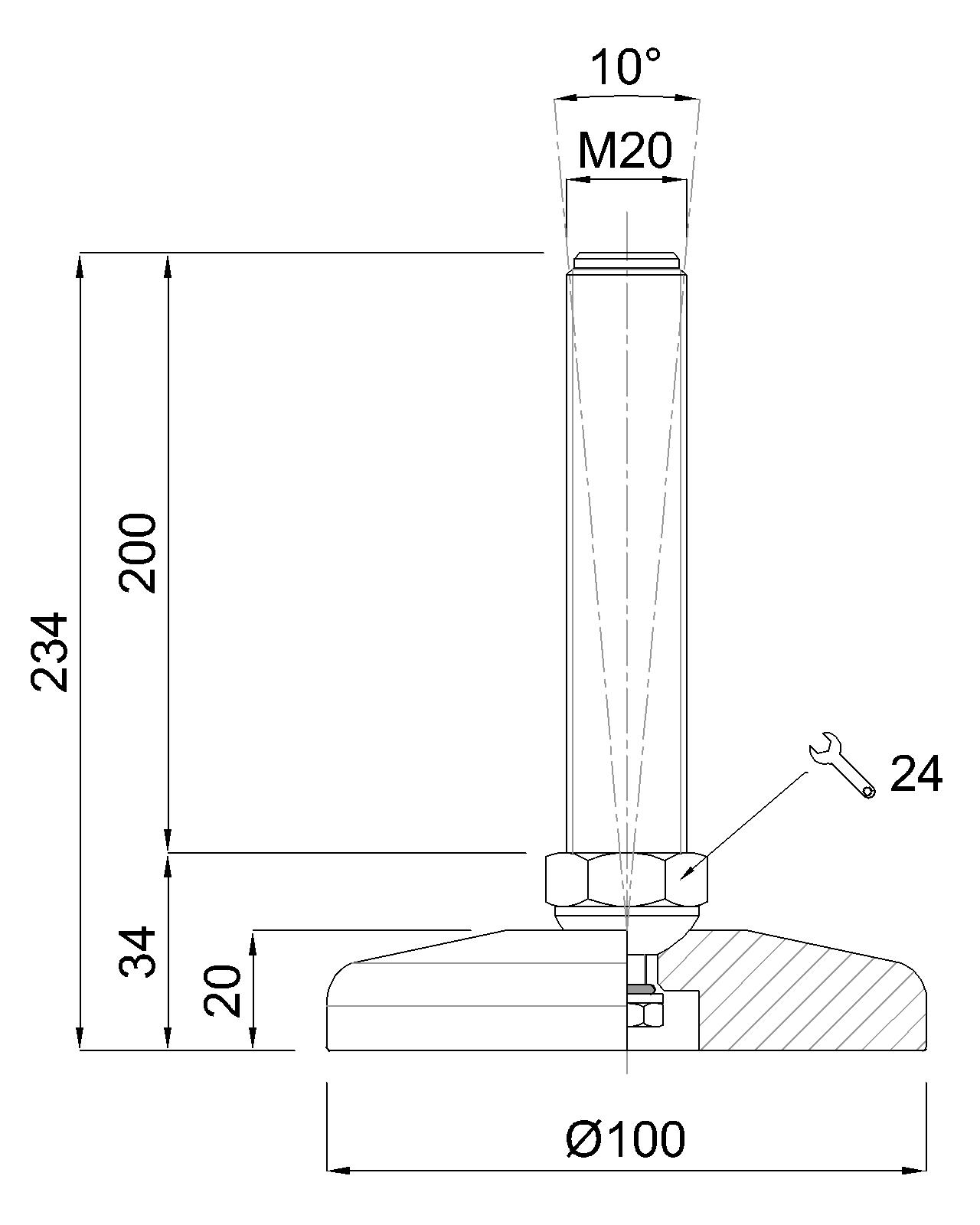

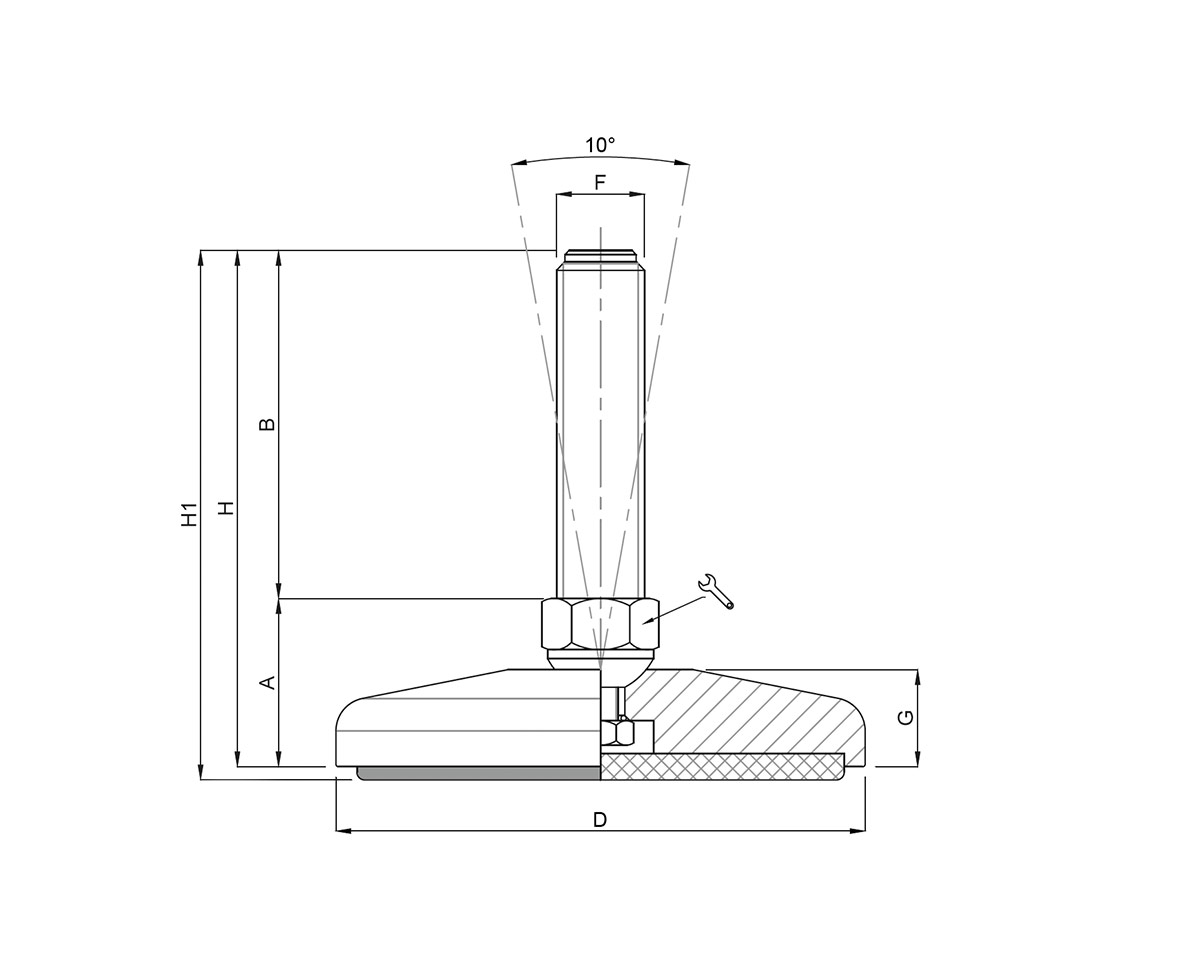

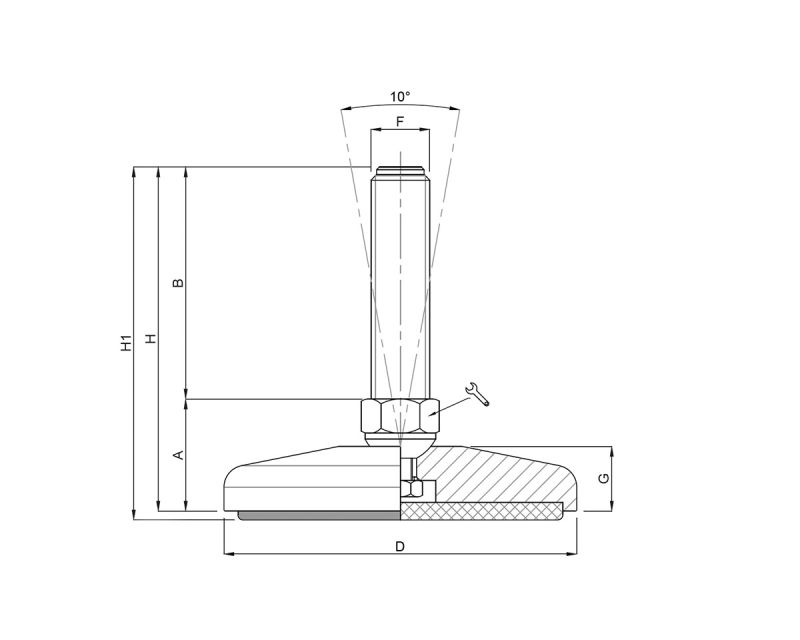

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
