Levelling foot MASSIV Steel, Ø 100 mm, M20 x 150 mm
EAN
4061408078530
Type
45811374
The MASSIV Steel Levelling Foot features a robust galvanized steel construction with a 100 mm diameter and M20 x 150 mm threading, supporting static loads up to 40,000 N. Its articulated screw allows for a 10° leveling angle, ensuring stability and precision for your engineering needs.
| Quantity | Price |
|---|---|
| From 1 |
€27.39*
|
| From 5 |
€26.23*
|
| From 15 |
€25.40*
|
| From 50 |
€25.07*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

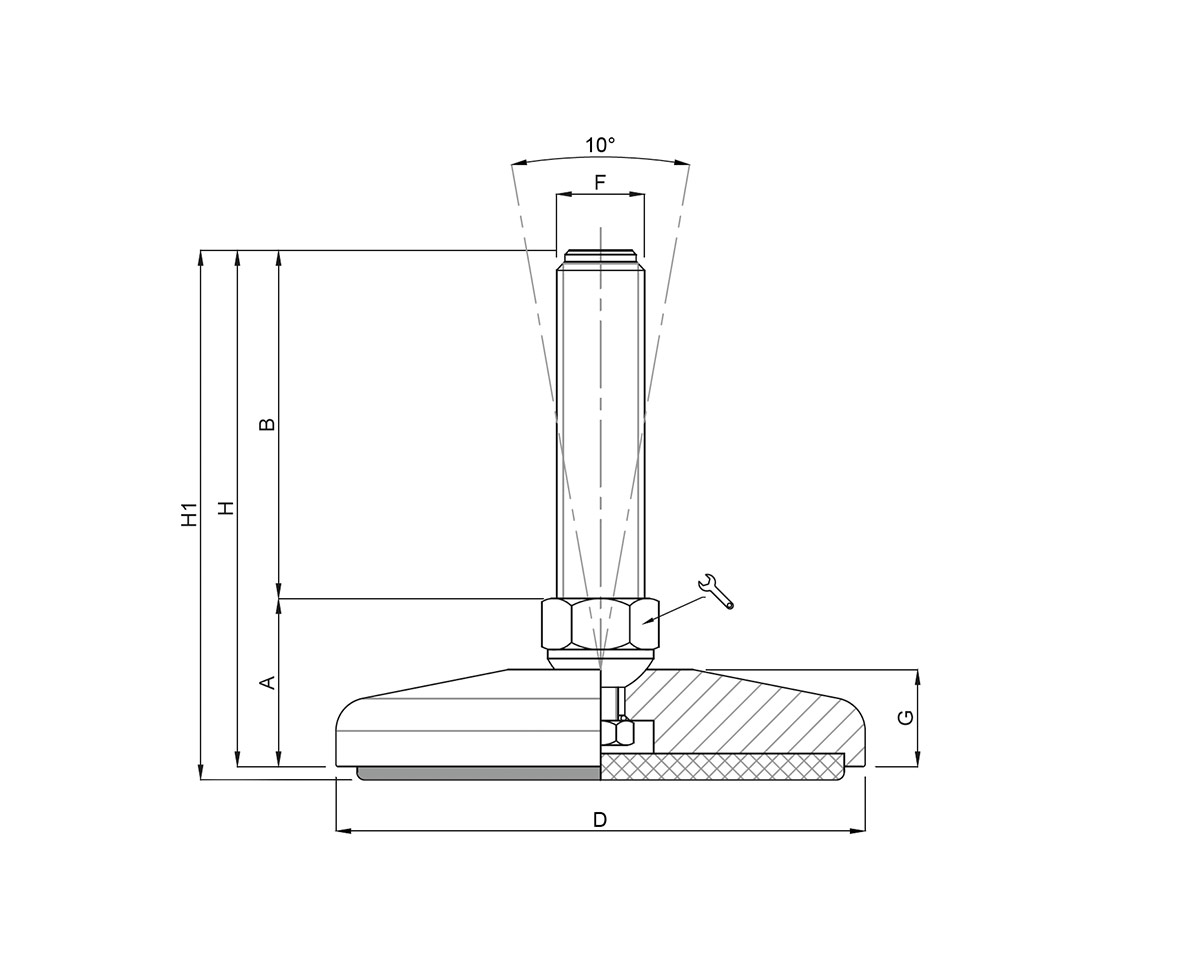

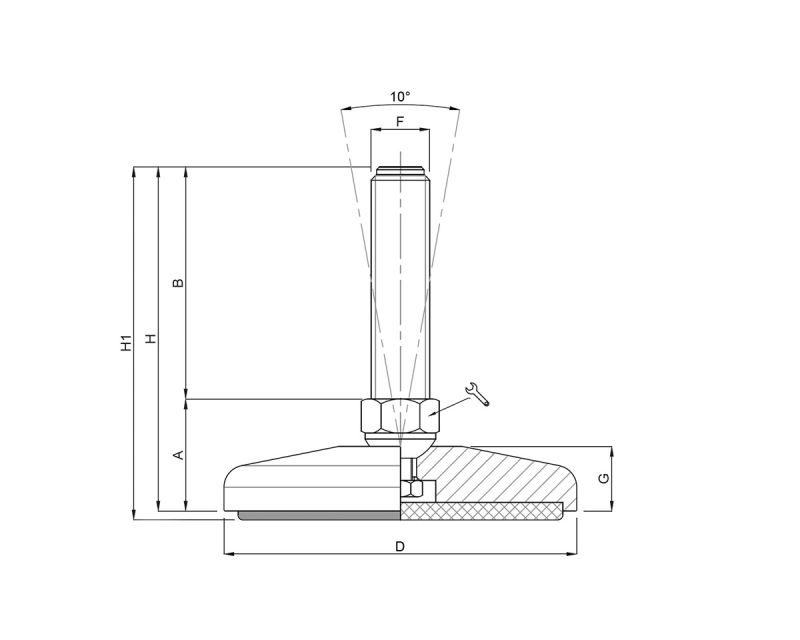

Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M20 x 150 mm, Galvanized steel, Total height 184 mm, Articulated screw 10°, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
