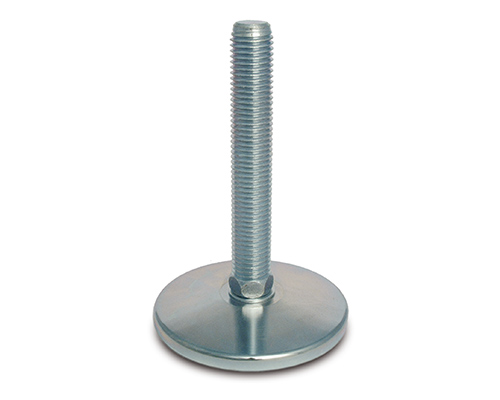

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 150 mm

4061408077014
45815436

Introducing the MASSIV Steel Levelling Foot, designed for maximum stability with a static load capacity of 35,000 N. Perfect for heavy-duty applications, featuring a galvanized steel construction and adjustable support angle.

  • Robust construction from galvanized steel ensures high corrosion resistance and durability.
  • Large footplate diameter of 120 mm provides excellent stability and load distribution.
  • Articulated screw design allows for a compensation angle of up to 5°, adapting to uneven surfaces.
  • High static load capacity of 35,000 N makes it suitable for heavy machinery and equipment.
  • Precision-engineered with a spindle diameter of 16 mm and a length of 150 mm for reliable adjustments.
Quantity Price
From 1
€16.55*
From 5
€15.85*
From 15
€15.35*
From 50
€15.15*

Currently sold out, Refill time: 5 days

€16.55* / piece
Our payment methods:

Product properties


Footplate material: Steel
Anti-slip: No
Ø range base plate (mm): 111-130
Vibration damping: No
Material spindle: Steel
Ø spindle (mm): 16
Spindle length (mm): 150
Balancing angle:
Hygiene: No

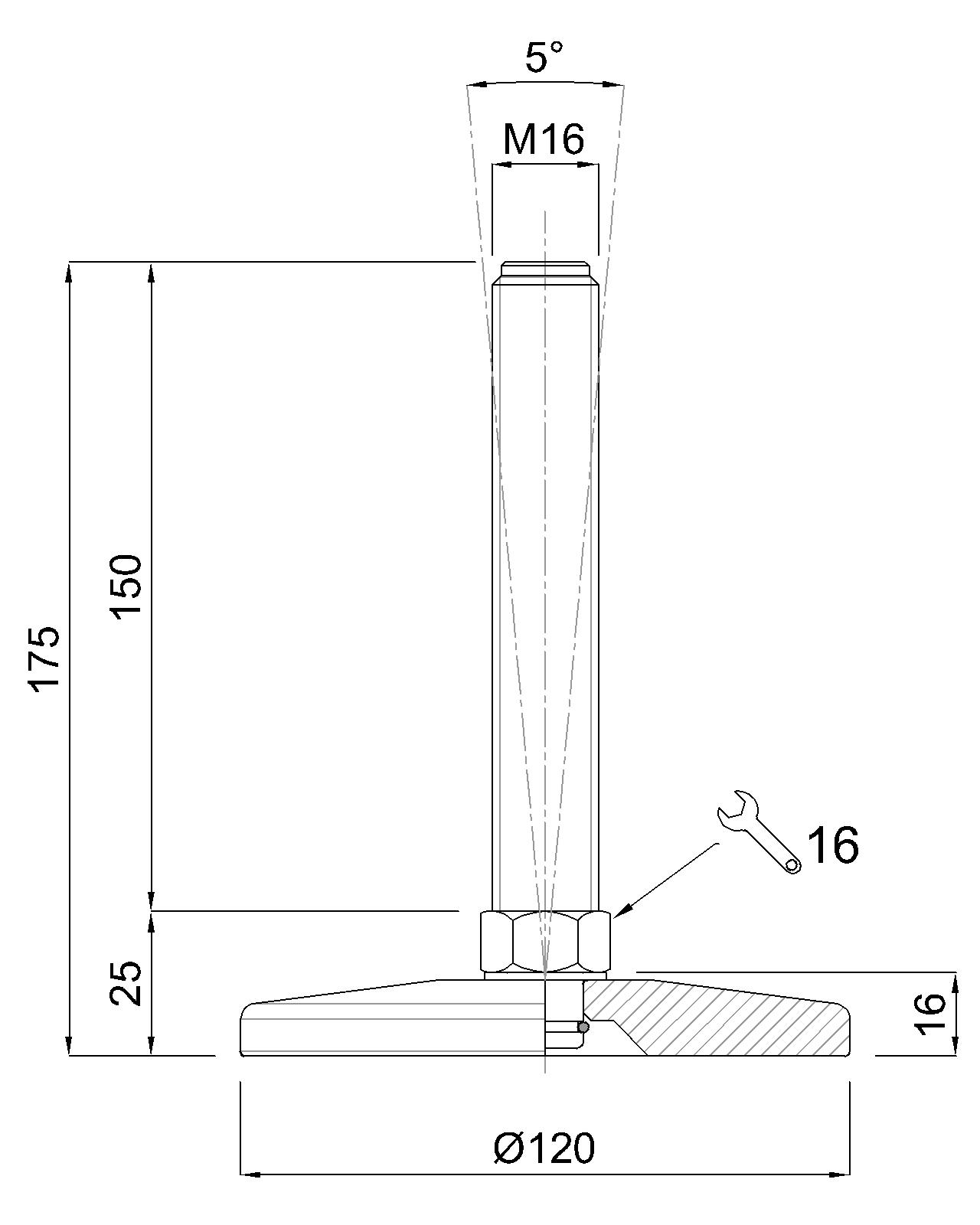

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 150 mm, Galvanized steel, Total height 175 mm, Articulated screw 5°, Static load 35.000 N
