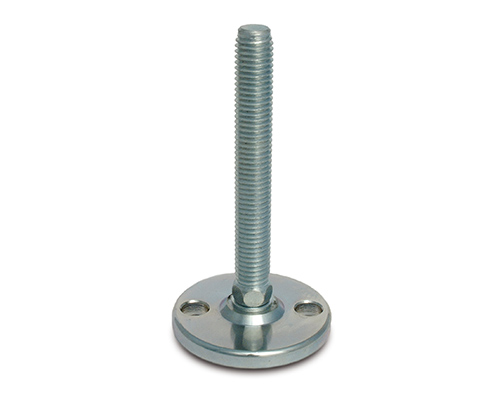

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, Drills
EAN
4061408073290
Type
45815488
Enhance stability with our MASSIV Steel Levelling Foot, featuring a 65 mm diameter and M16 x 50 mm spindle. With a static load capacity of 18,000 N and adjustable 5° angle, it's ideal for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.74*
|
| From 5 |
€10.29*
|
| From 15 |
€9.96*
|
| From 50 |
€9.83*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, Galvanized steel, Total height 69 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Static load 18.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
