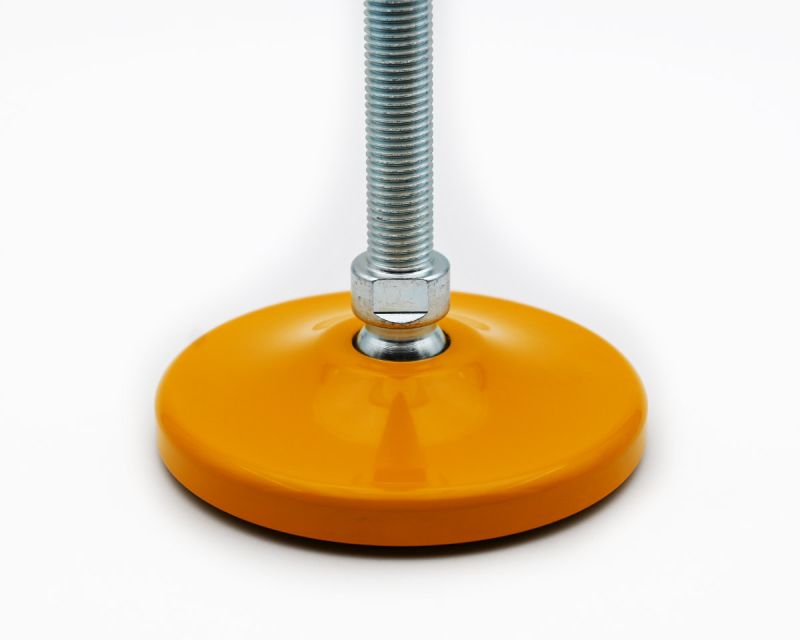

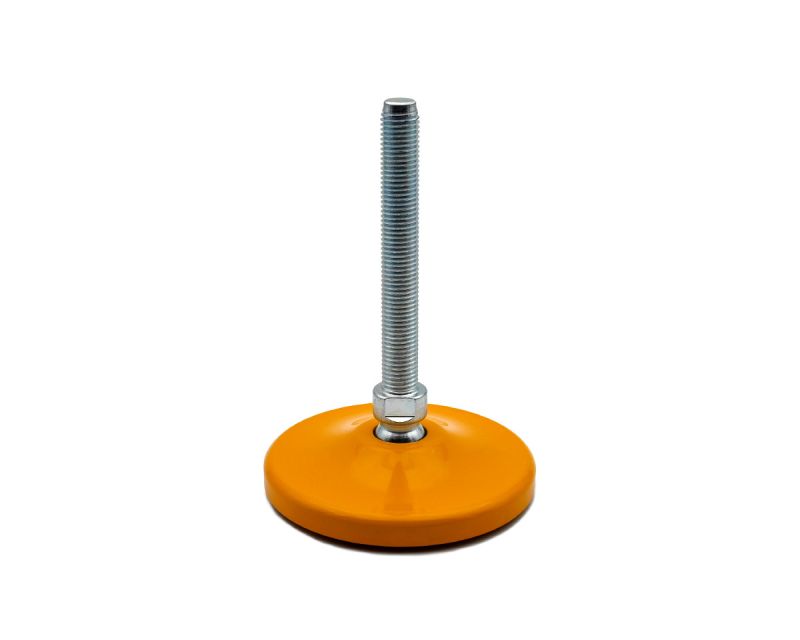

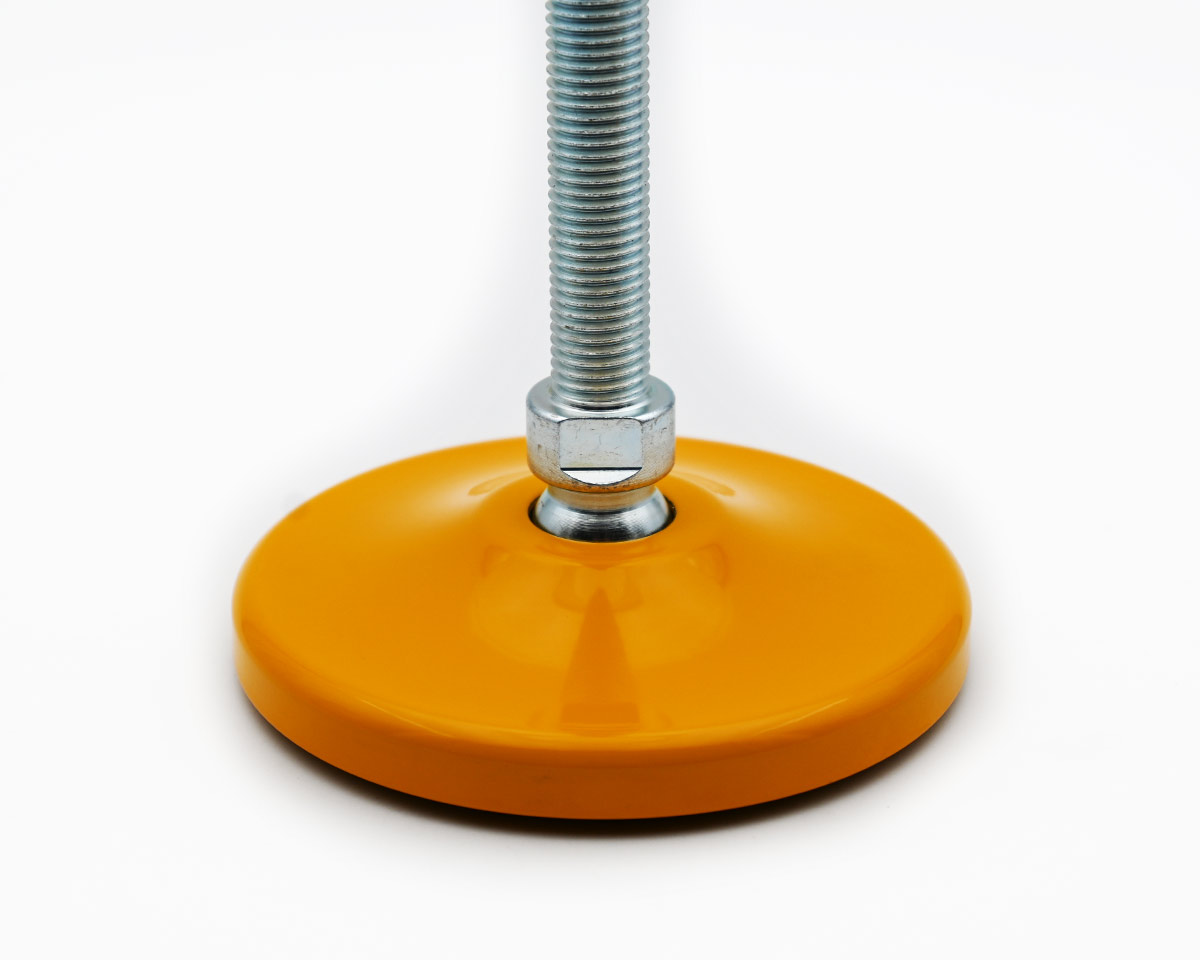

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 175 mm, yellow, NBR
EAN
4061408042883
Type
45810859
Discover the MASSIV Steel Levelling Foot, designed for exceptional stability and static loads of up to 55,000 N. Featuring a Ø 120 mm plate, galvanized finish, and 30° articulated screw for precise adjustments. Ideal for demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€34.06*
|
| From 5 |
€32.61*
|
| From 15 |
€31.58*
|
| From 50 |
€31.17*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |

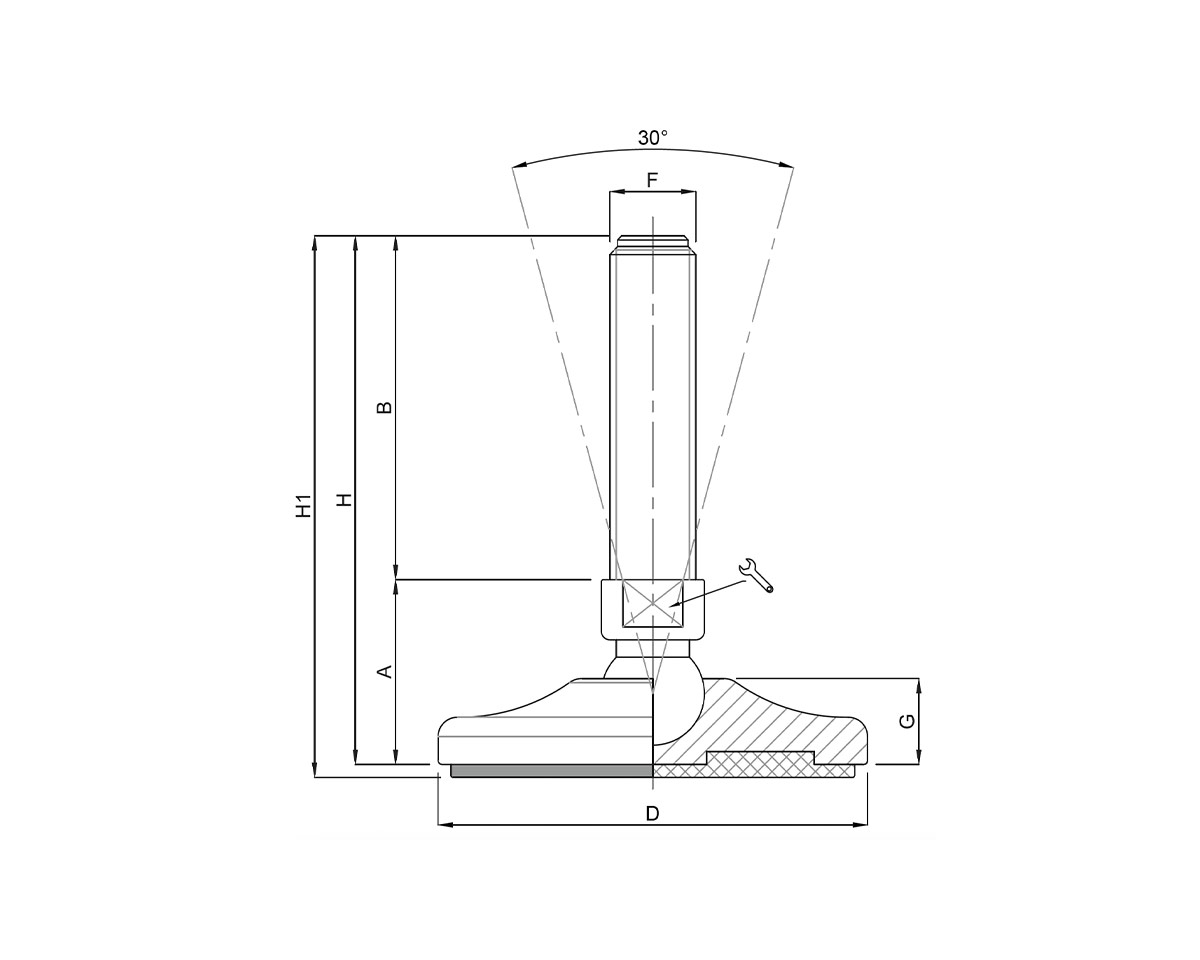

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M24 x 175 mm, Galvanized steel, Total height 225 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
