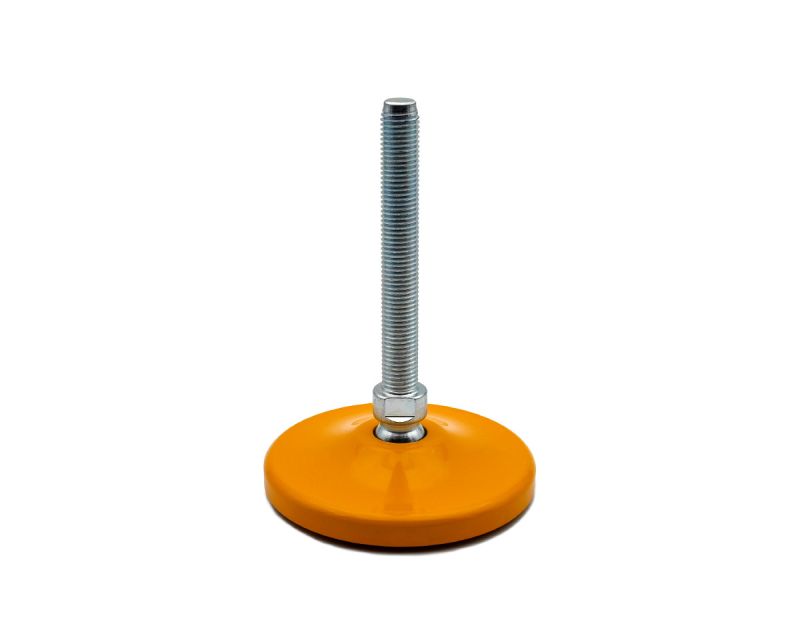

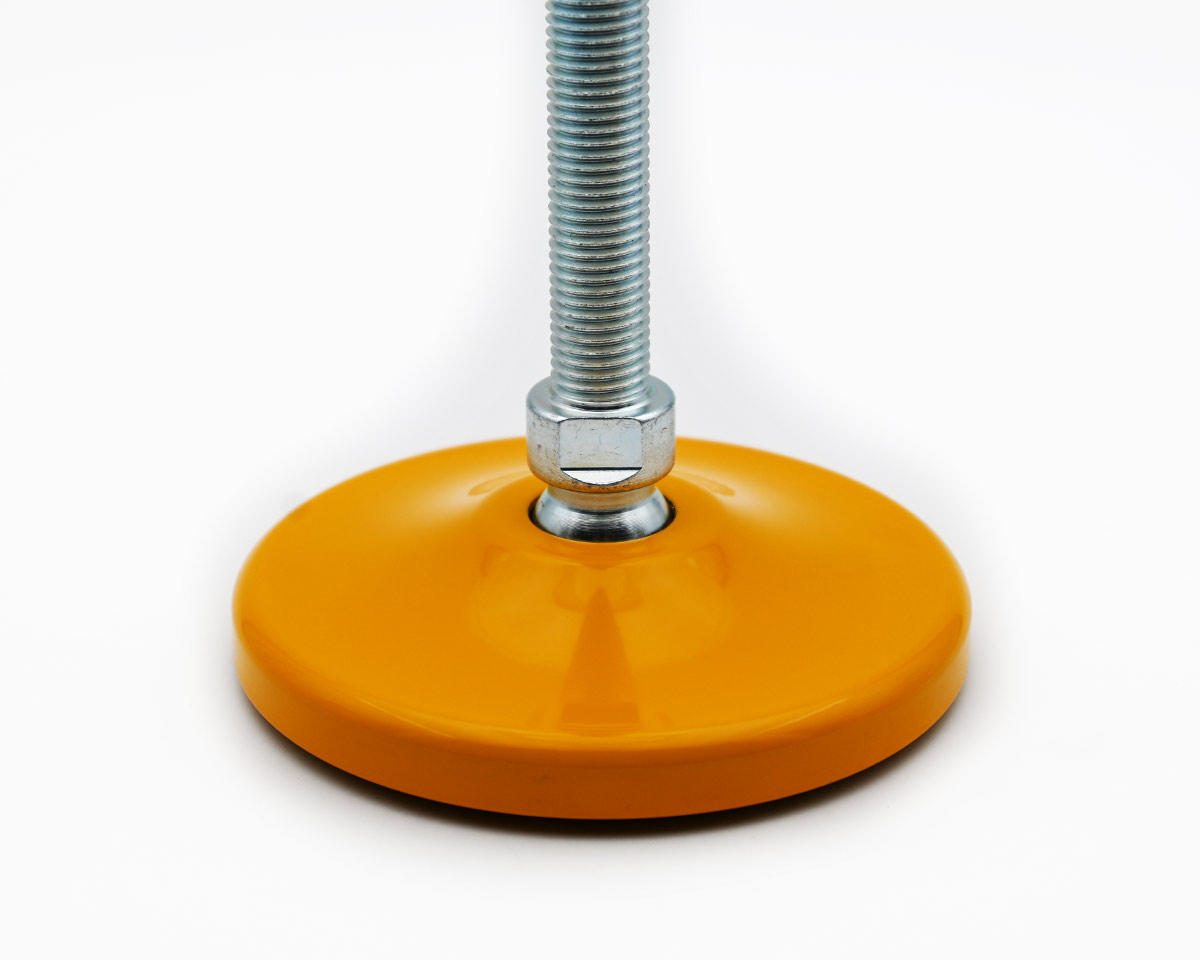

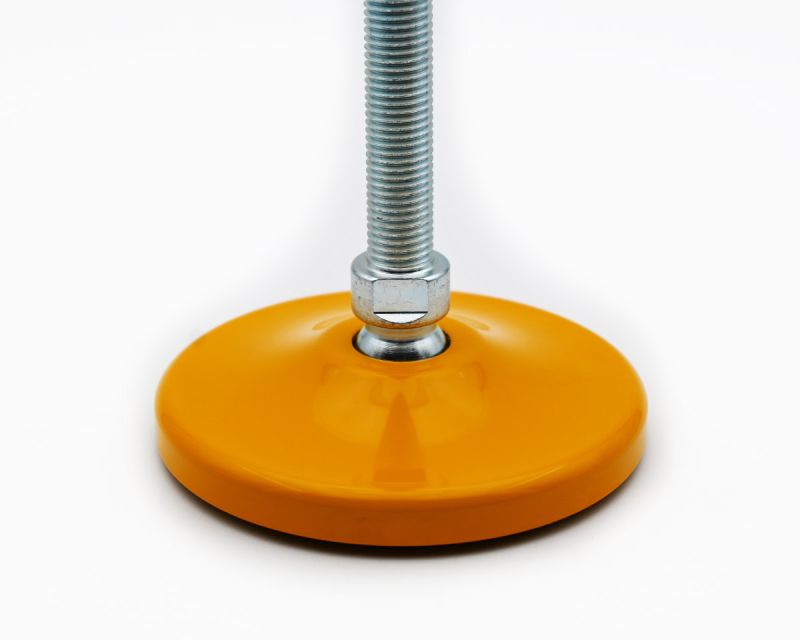

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 175 mm, yellow
EAN
4061408042876
Type
45810858
Discover the MASSIV Steel Levelling Foot, designed for robust stability with a 120 mm diameter base and M24 x 175 mm spindle. With a static load capacity of 55,000 N and an articulated screw feature for a 30° adjustment, it ensures reliable performance in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.65*
|
| From 5 |
€31.27*
|
| From 15 |
€30.28*
|
| From 50 |
€29.88*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |

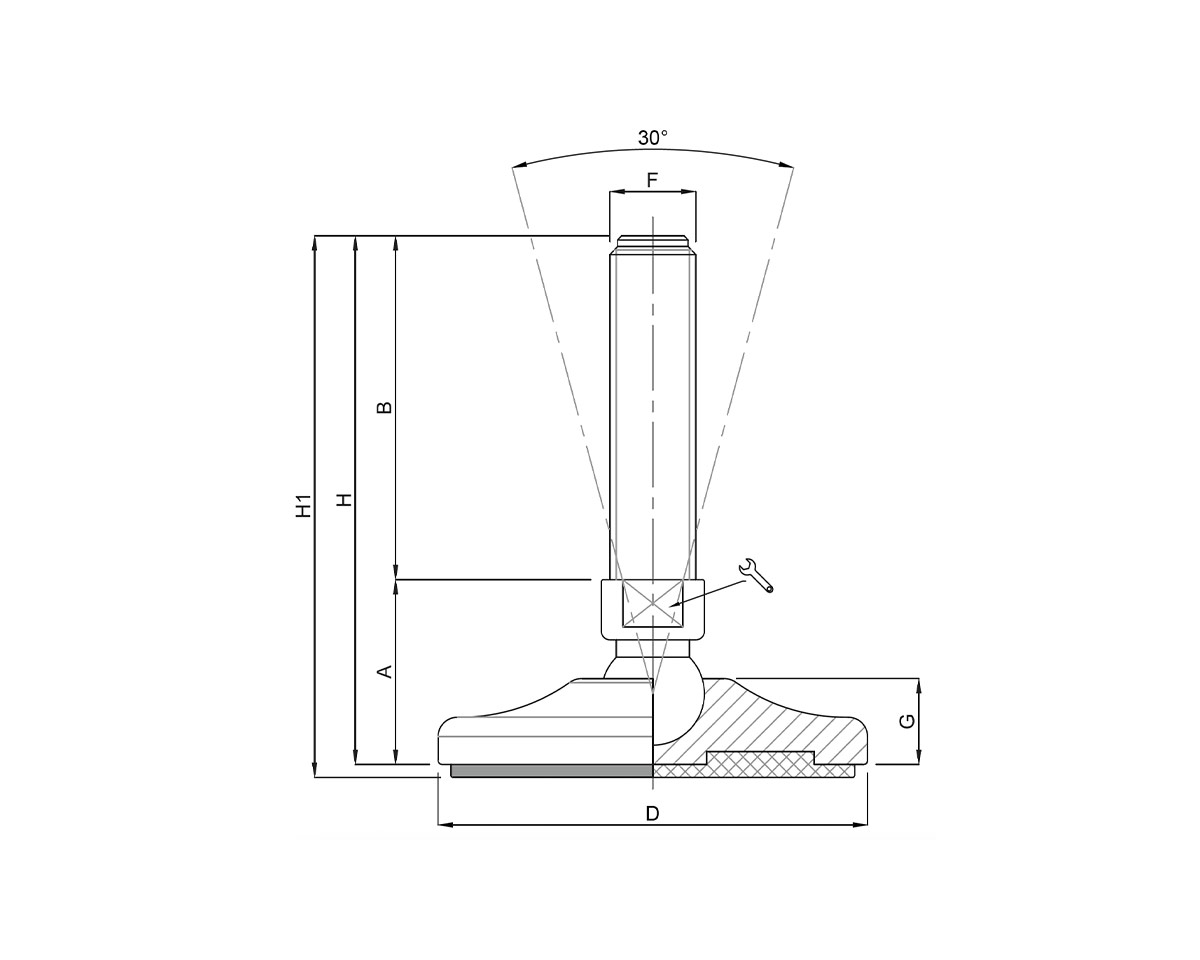

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M24 x 175 mm, Galvanized steel, Total height 222 mm, Articulated screw 30°, yellow painted, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
