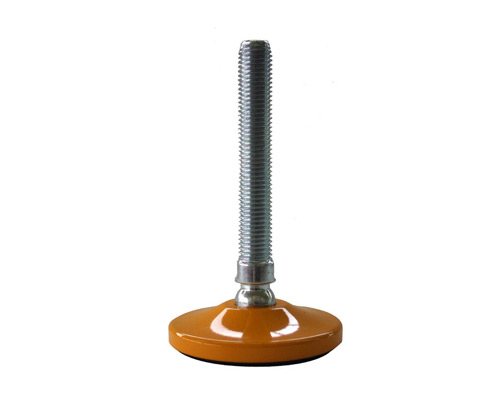

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 175 mm, yellow
EAN
4061408042616
Type
45810824
Discover the MASSIV Steel Levelling Foot, designed for maximum stability with a static load capacity of 35,000 N. Its durable yellow finish and articulated screw allow for precise adjustments up to 30°.
| Quantity | Price |
|---|---|
| From 1 |
€32.65*
|
| From 5 |
€31.27*
|
| From 15 |
€30.28*
|
| From 50 |
€29.88*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M16 x 175 mm, Galvanized steel, Total height 221 mm, Articulated screw 30°, yellow painted, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
