Levelling foot MASSIV Steel, Ø 120 mm, M16 x 100 mm, yellow, NBR
Discover the MASSIV Steel leveling foot, featuring a robust 120 mm diameter and a dynamic load capacity of 35,000 N. With articulated screw design and anti-slip NBR, ensure stability in technical applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.18*
|
| From 5 |
€30.81*
|
| From 15 |
€29.84*
|
| From 50 |
€29.45*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

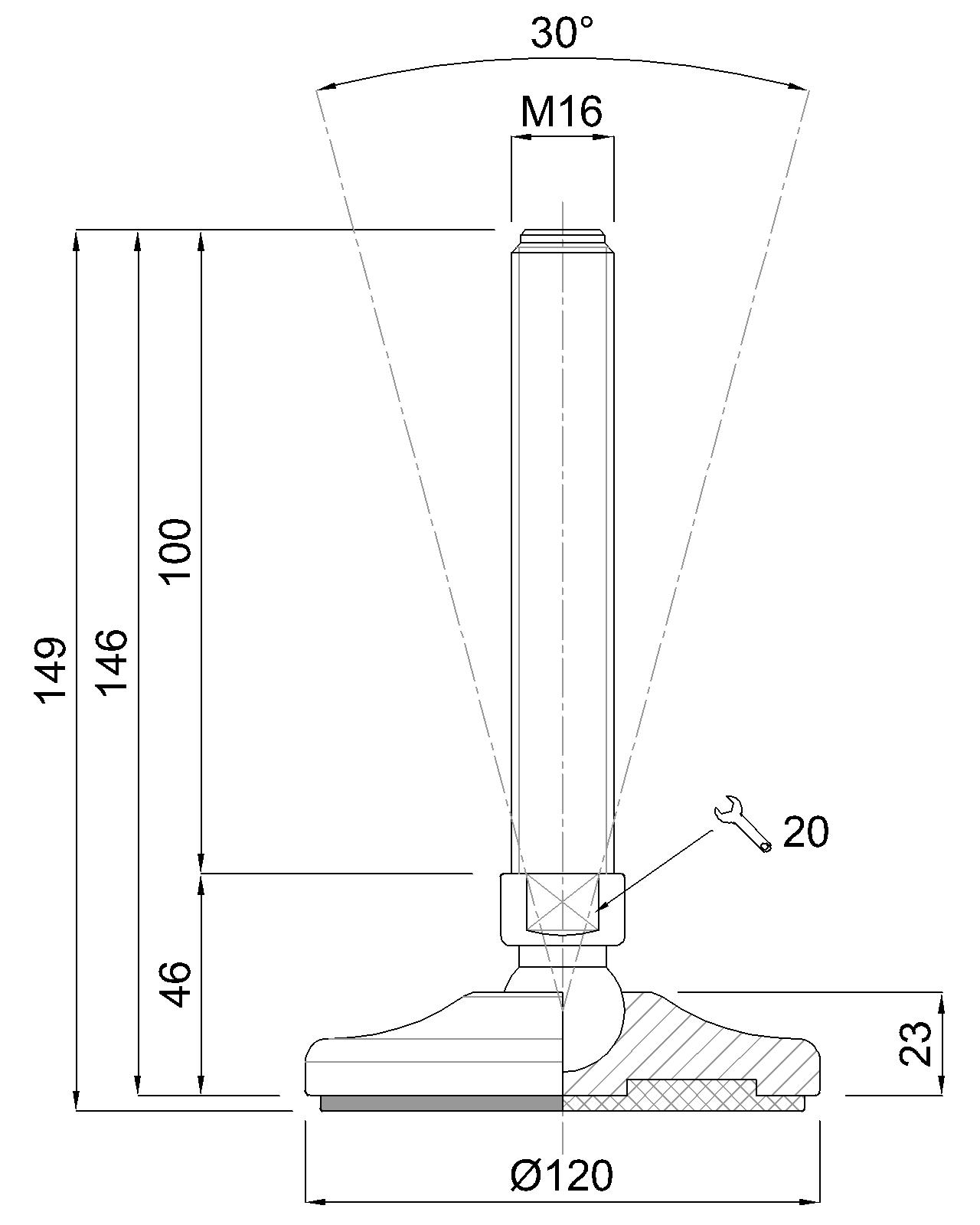

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
