Levelling foot MASSIV Steel, Ø 100 mm, M20 x 150 mm, NBR
EAN
4061408041879
Type
45811375
Discover the MASSIV Steel Levelling Foot, designed for optimal stability with a diameter of 100 mm and a static load capacity of 40,000 N. Featuring NBR non-slip material and an articulated screw for 10° adjustments, it ensures secure positioning in demanding applications. Ideal for engineers and technical professionals.
| Quantity | Price |
|---|---|
| From 1 |
€28.45*
|
| From 5 |
€27.24*
|
| From 15 |
€26.38*
|
| From 50 |
€26.03*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

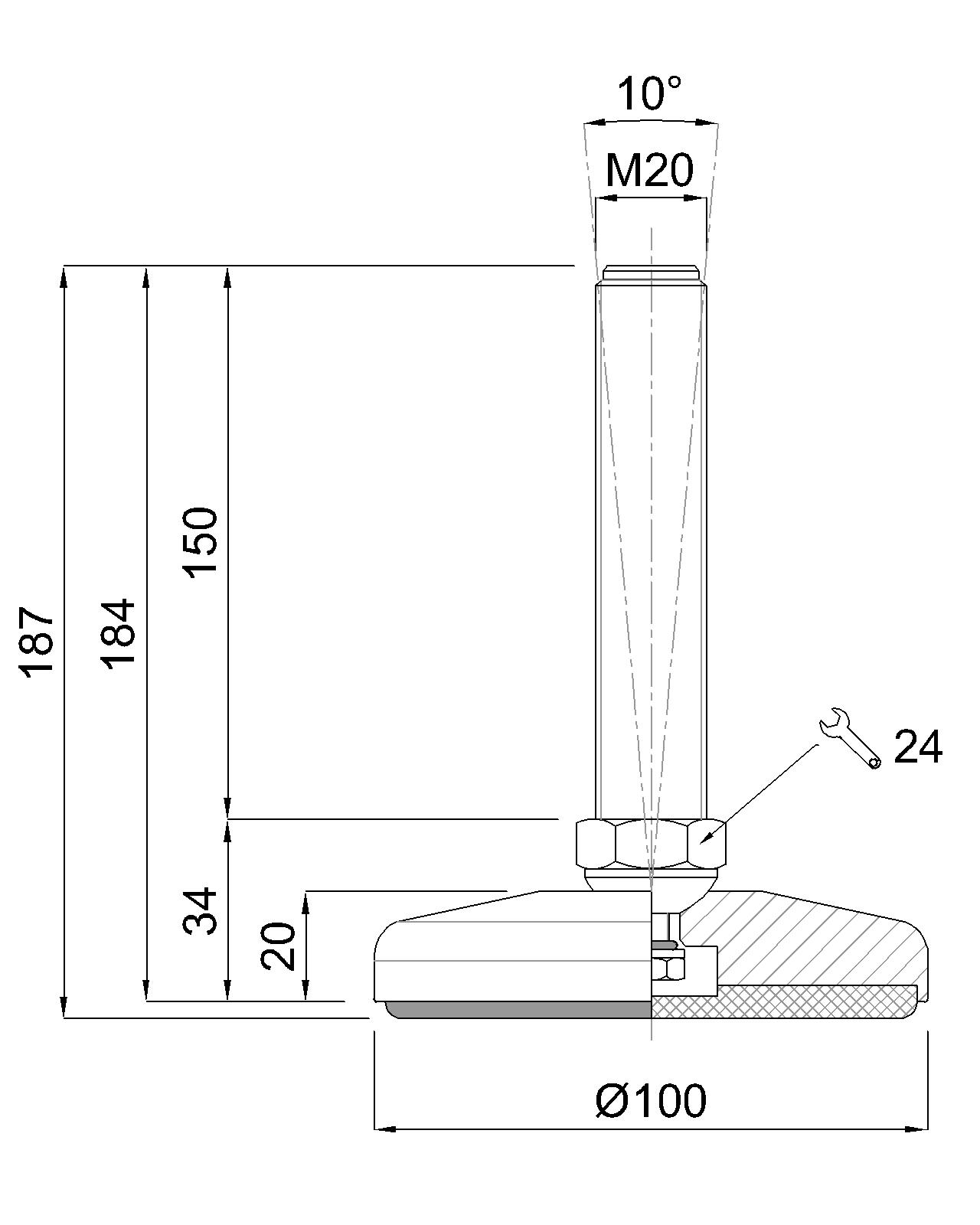

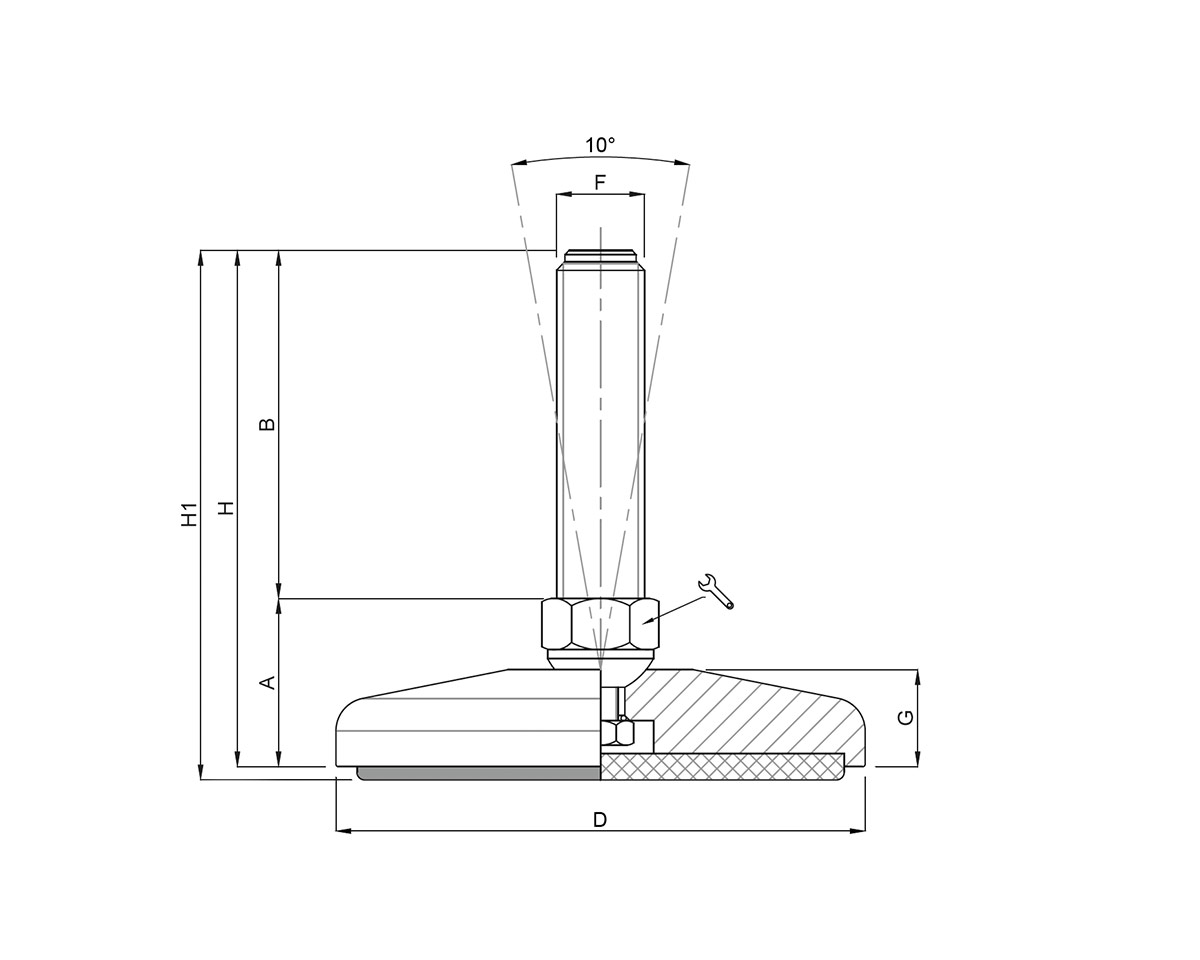

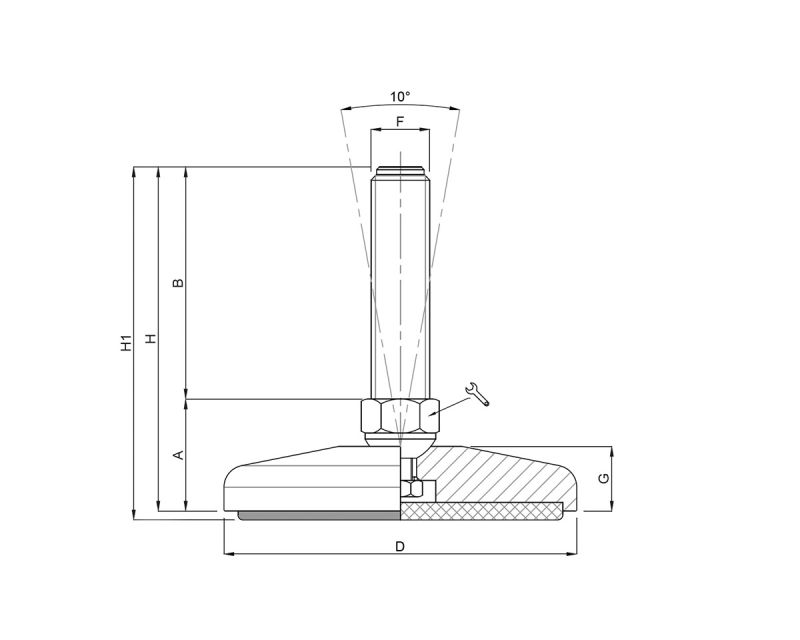

Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M20 x 150 mm, Galvanized steel, Total height 187 mm, Articulated screw 10°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
