Levelling foot MASSIV Steel, Ø 100 mm, M20 x 200 mm, yellow, NBR
Discover the MASSIV Steel leveling foot with a robust design, 100 mm diameter, and a static load capacity of 45,000 N. Ideal for precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€27.84*
|
| From 5 |
€26.65*
|
| From 15 |
€25.81*
|
| From 50 |
€25.47*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |

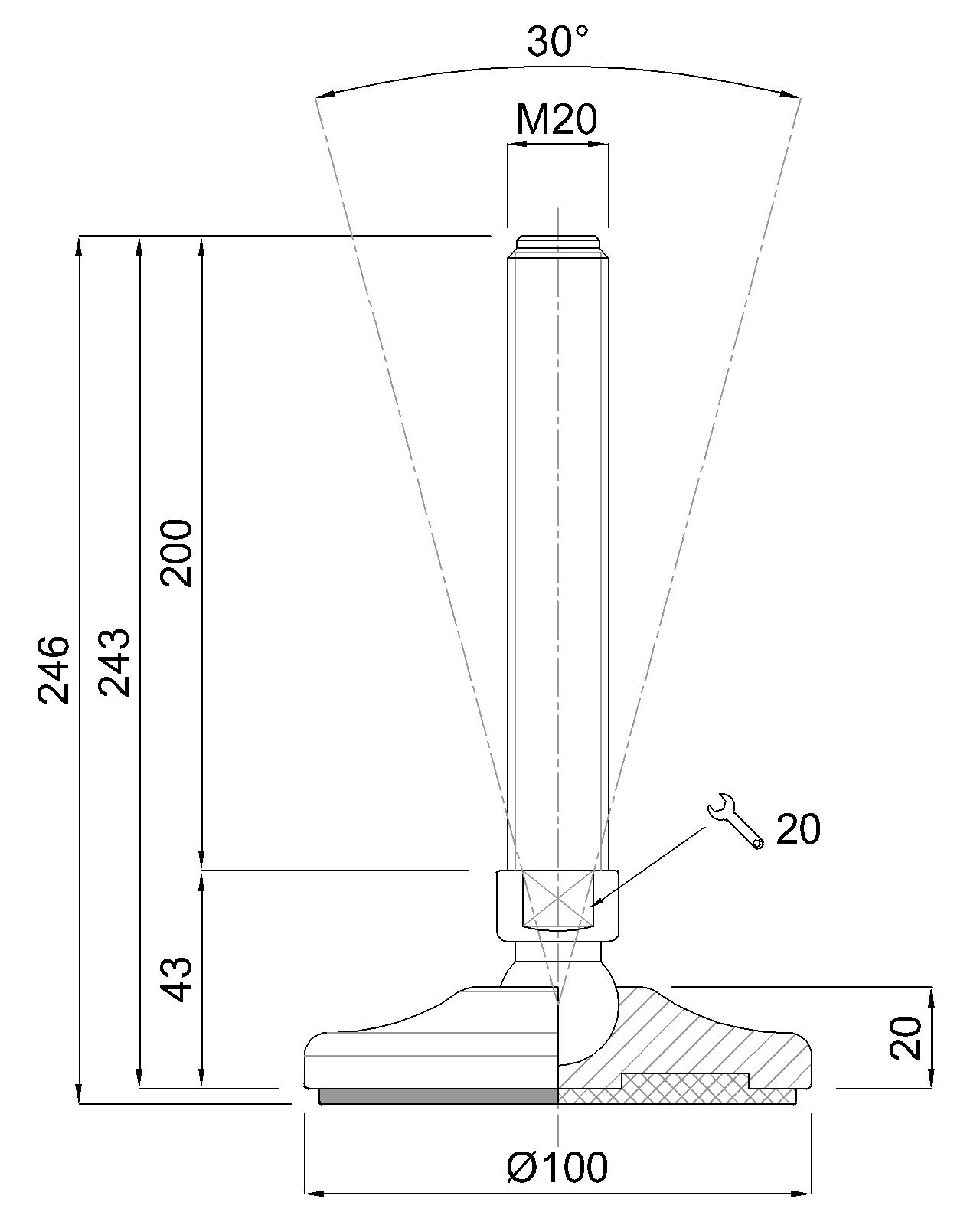

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
