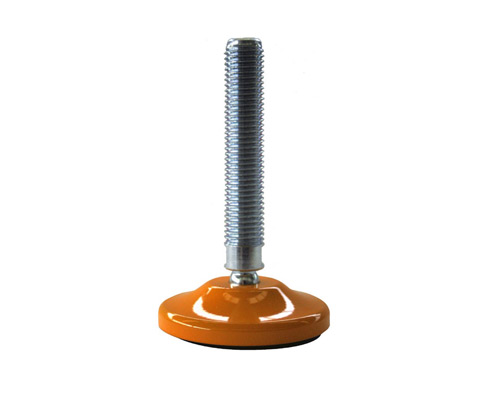

Levelling foot MASSIV Steel, Ø 80 mm, M20 x 200 mm, yellow, NBR
EAN
4061408041428
Type
45810759
Introducing the MASSIV Steel Levelling Foot: engineered for precision with a robust 80 mm diameter and a static load capacity of 30,000 N. Featuring a galvanized finish and 30° articulated screw for optimal stability and anti-slip performance with NBR rubber. Ideal for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€18.93*
|
| From 5 |
€18.12*
|
| From 15 |
€17.55*
|
| From 50 |
€17.32*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 200 mm, Galvanized steel, Total height 239 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
