Levelling foot MASSIV Steel, Ø 80 mm, M20 x 125 mm, yellow, NBR
EAN
4061408041367
Type
45810753
Discover the MASSIV Steel Levelling Foot, designed for superior stability with a 30,000 N static load capacity. Featuring a durable galvanized finish and articulated screw for 30° adjustment, it ensures precise leveling in challenging conditions.
| Quantity | Price |
|---|---|
| From 1 |
€17.42*
|
| From 5 |
€16.68*
|
| From 15 |
€16.16*
|
| From 50 |
€15.95*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

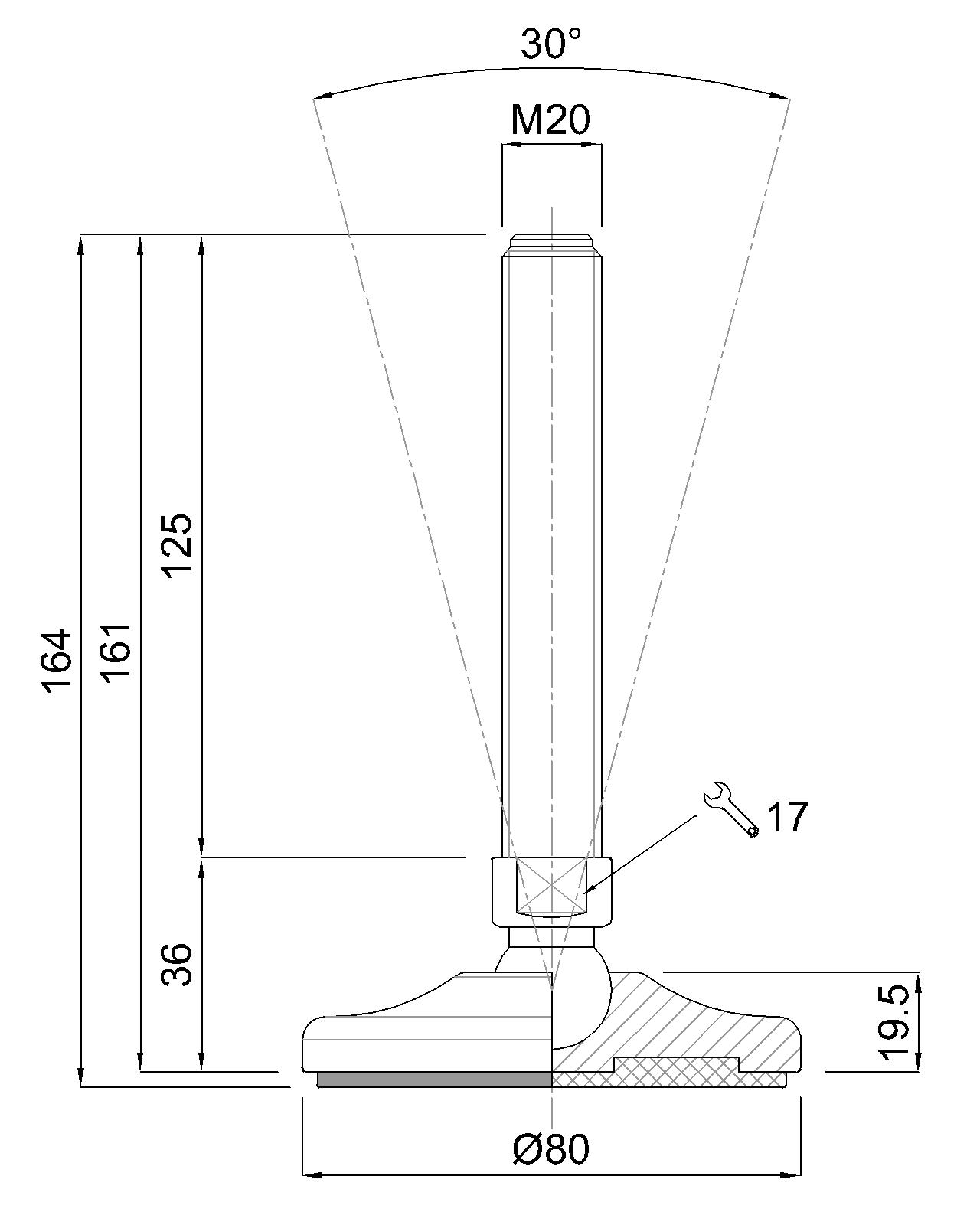

Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 125 mm, Galvanized steel, Total height 164 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
