Levelling foot MASSIV Steel, Ø 80 mm, M20 x 100 mm, yellow, NBR
EAN
4061408041350
Type
45810751
Discover our MASSIV Steel Levelling Foot, designed for robust stability with a static load capacity of 30,000 N. Featuring a 30° articulated screw, anti-slip NBR, and durable galvanized steel, it ensures precision leveling for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€16.95*
|
| From 5 |
€16.23*
|
| From 15 |
€15.71*
|
| From 50 |
€15.51*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

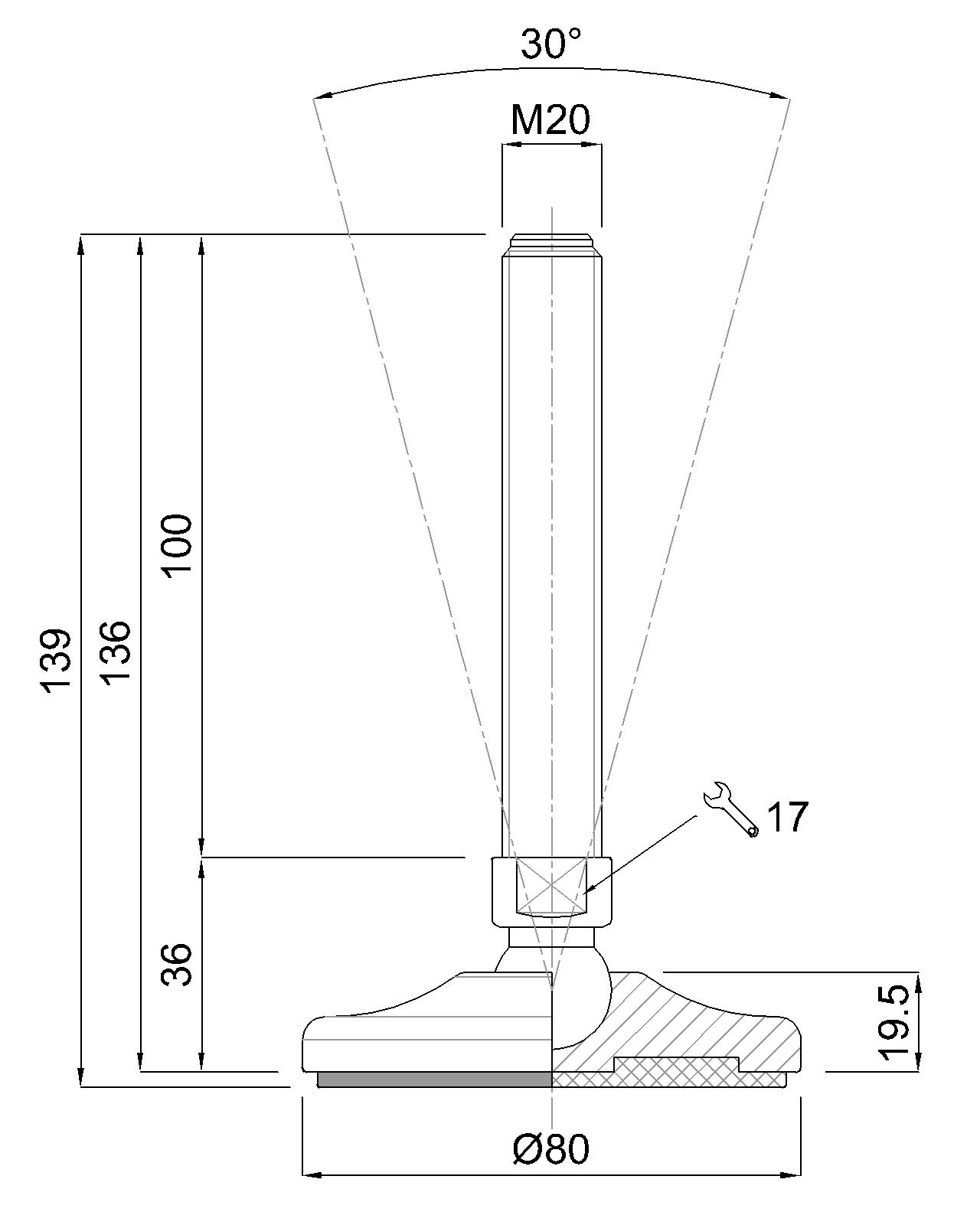

Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 100 mm, Galvanized steel, Total height 139 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
