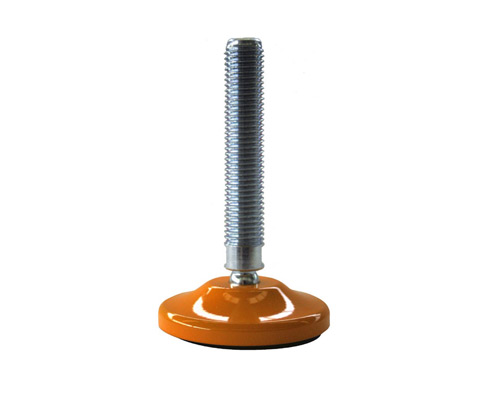

Levelling foot MASSIV Steel, Ø 80 mm, M20 x 100 mm, yellow
Discover the MASSIV Steel levelling foot, featuring a robust diameter of 80 mm and an adjustable 30° screw, designed to support static loads up to 30,000 N. Perfect for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€16.20*
|
| From 5 |
€15.52*
|
| From 15 |
€15.02*
|
| From 50 |
€14.83*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

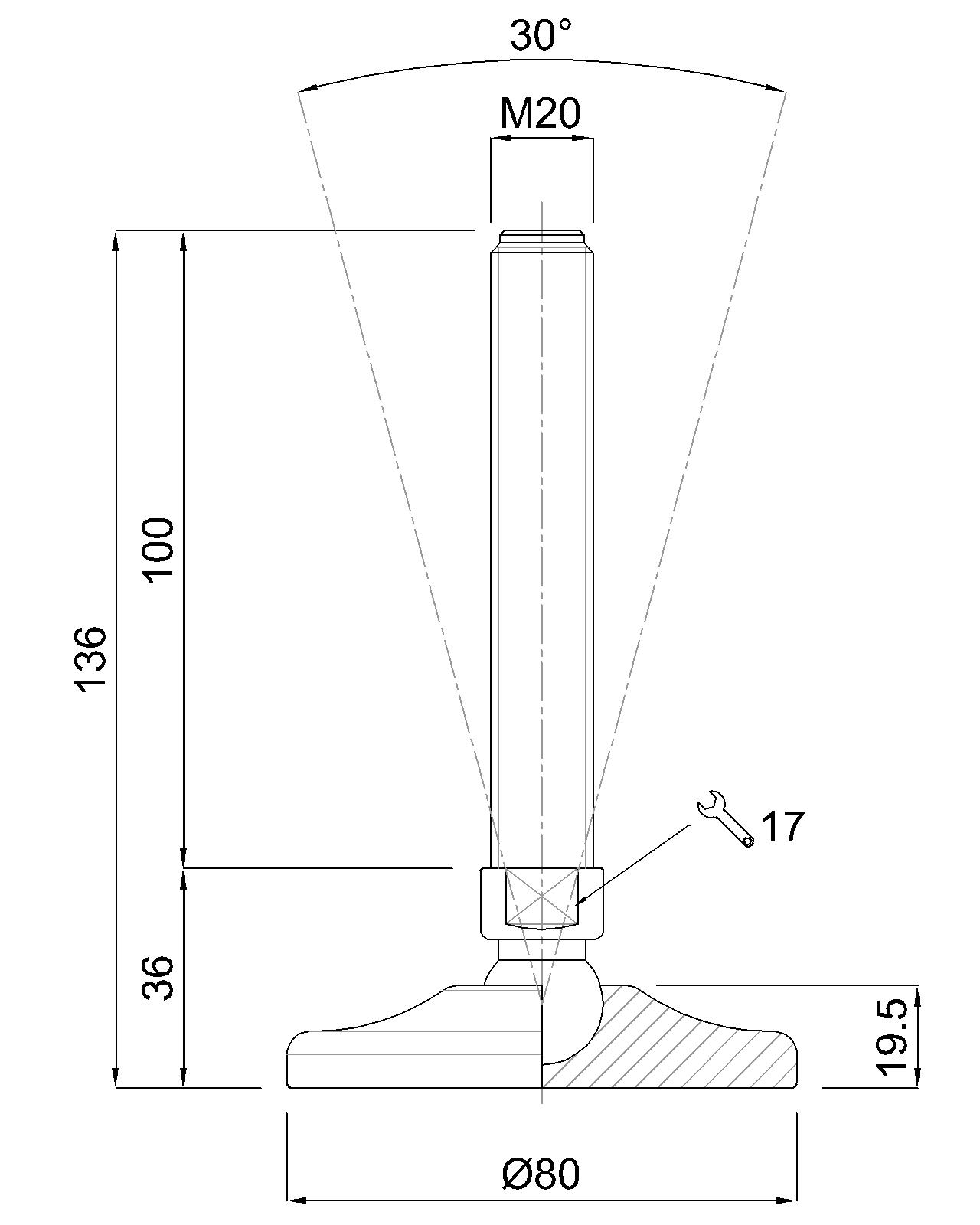

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
