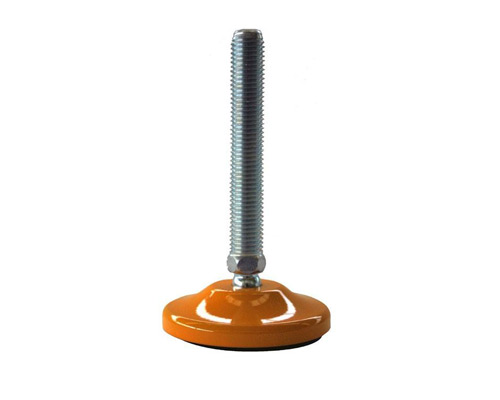

Levelling foot MASSIV Steel, Ø 80 mm, M16 x 125 mm, yellow, NBR
EAN
4061408041275
Type
45810741
Discover the MASSIV Steel Levelling Foot, featuring a robust 80 mm diameter and a static load capacity of 30,000 N. Ideal for precise leveling in demanding applications, it offers a 30° articulated screw with a durable yellow finish and anti-slip NBR base for enhanced stability.
| Quantity | Price |
|---|---|
| From 1 |
€16.86*
|
| From 5 |
€16.15*
|
| From 15 |
€15.64*
|
| From 50 |
€15.43*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

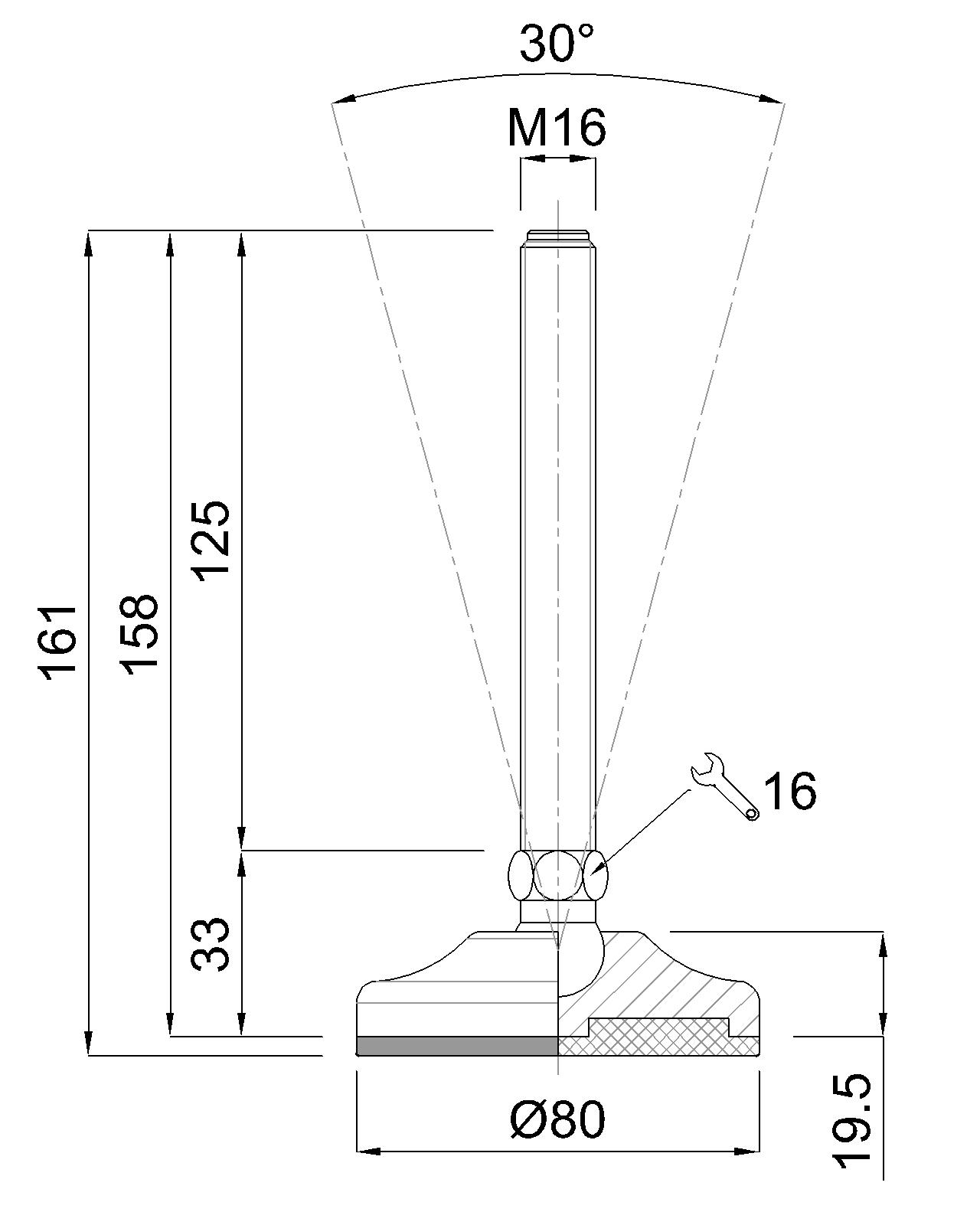

Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M16 x 125 mm, Galvanized steel, Total height 161 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
