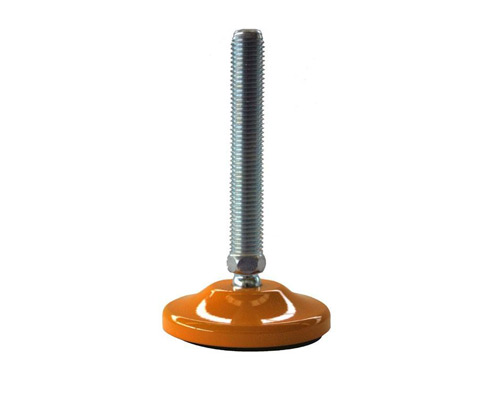

Levelling foot MASSIV Steel, Ø 80 mm, M16 x 75 mm, yellow
Introducing the MASSIV Steel leveling foot, engineered for precision. With an 80 mm diameter, M16 x 75 mm spindle, and a robust static load capacity of 30,000 N, it ensures stability and reliability. Ideal for technical applications requiring adjustable support!
| Quantity | Price |
|---|---|
| From 1 |
€15.48*
|
| From 5 |
€14.82*
|
| From 15 |
€14.35*
|
| From 50 |
€14.16*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

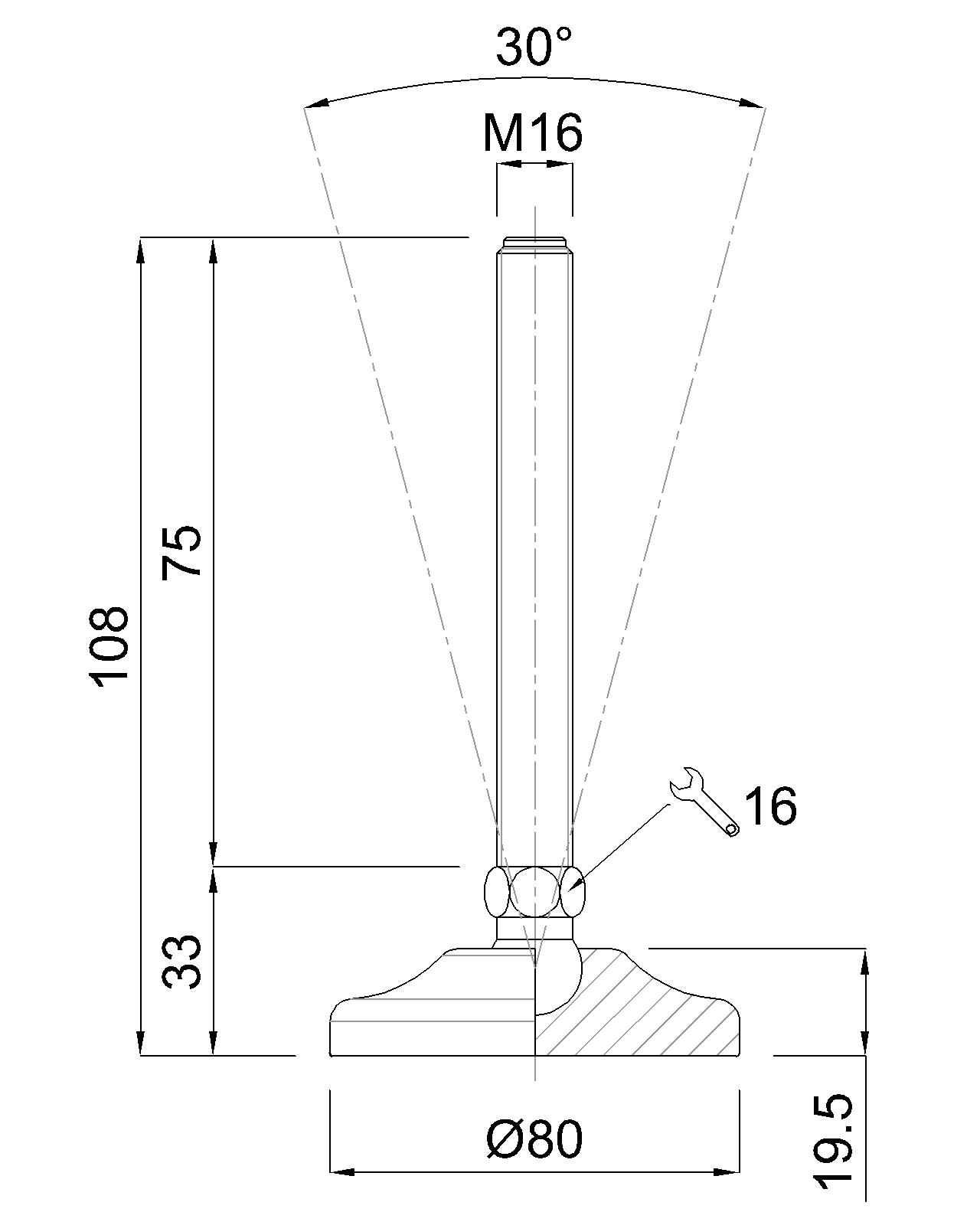

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
