Levelling foot MASSIV Steel, Ø 80 mm, M16 x 50 mm, yellow
EAN
4061408041213
Type
45810734
The MASSIV Steel leveling foot, with an 80 mm diameter and M16 x 50 mm thread, supports up to 30,000 N. Its articulated design allows for a 30° adjustment, ensuring stability in precise applications.
| Quantity | Price |
|---|---|
| From 1 |
€15.16*
|
| From 5 |
€14.52*
|
| From 15 |
€14.06*
|
| From 50 |
€13.88*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
| Hygiene: | No |

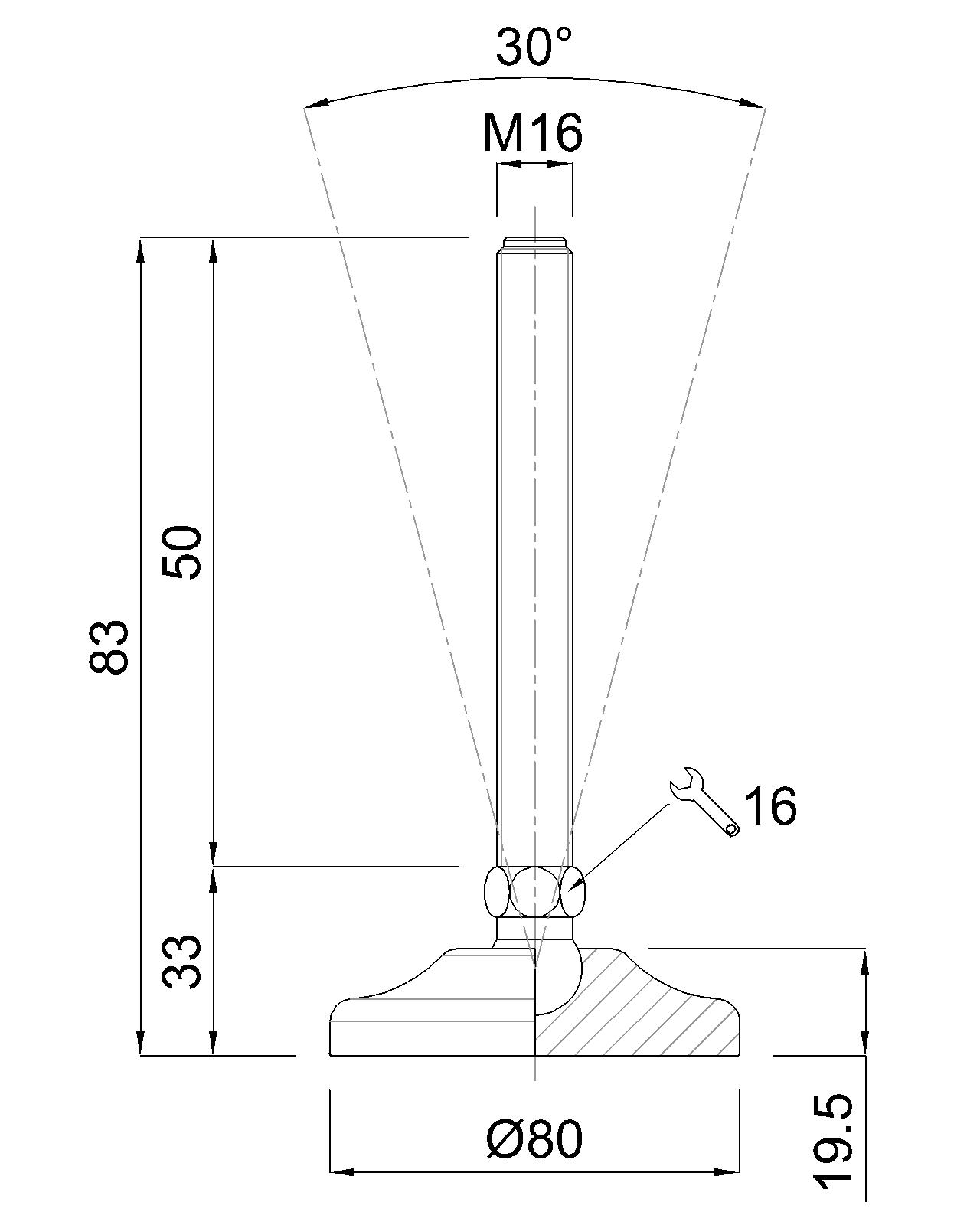

Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M16 x 50 mm, Galvanized steel, Total height 83 mm, Articulated screw 30°, yellow painted, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
