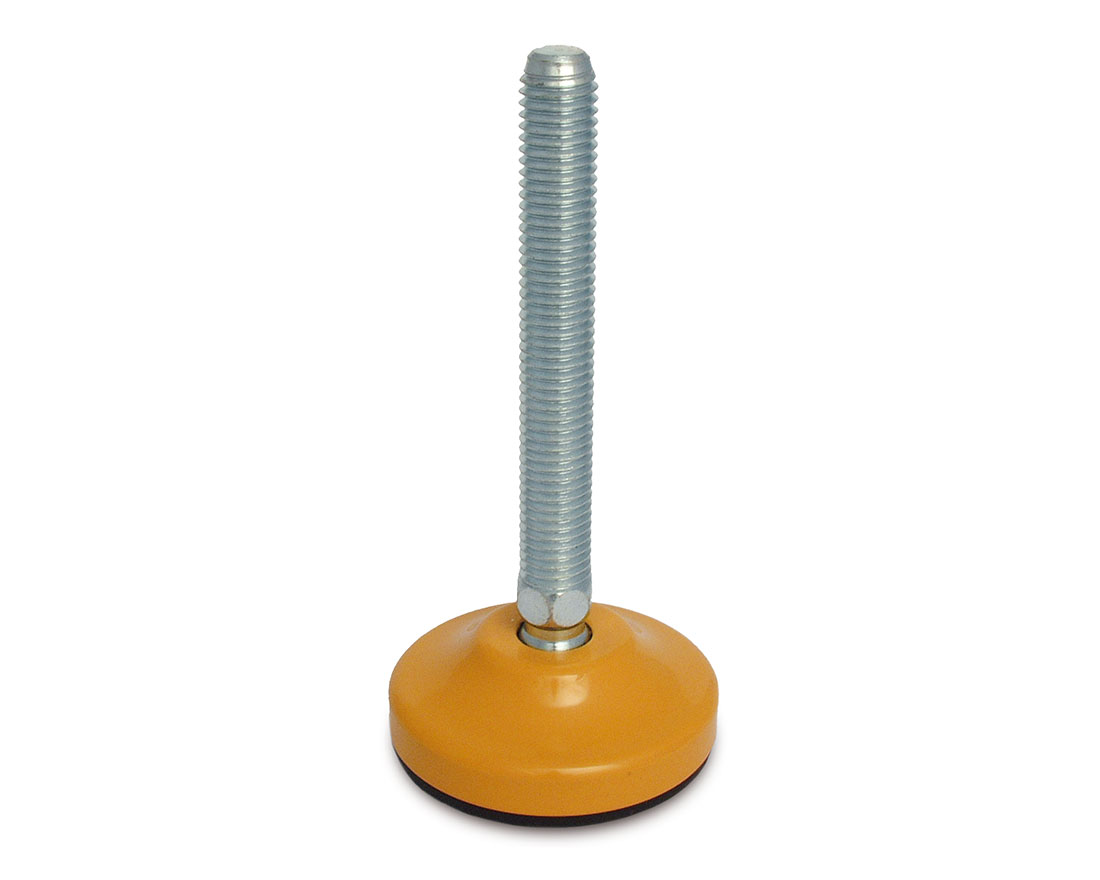

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 150 mm, yellow, NBR
Discover the MASSIV Steel levelling foot, engineered for stability with a diameter of 65 mm and a robust static load capacity of 20,000 N. Perfect for precise adjustments!
| Quantity | Price |
|---|---|
| From 1 |
€12.00*
|
| From 5 |
€11.49*
|
| From 15 |
€11.12*
|
| From 50 |
€10.98*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

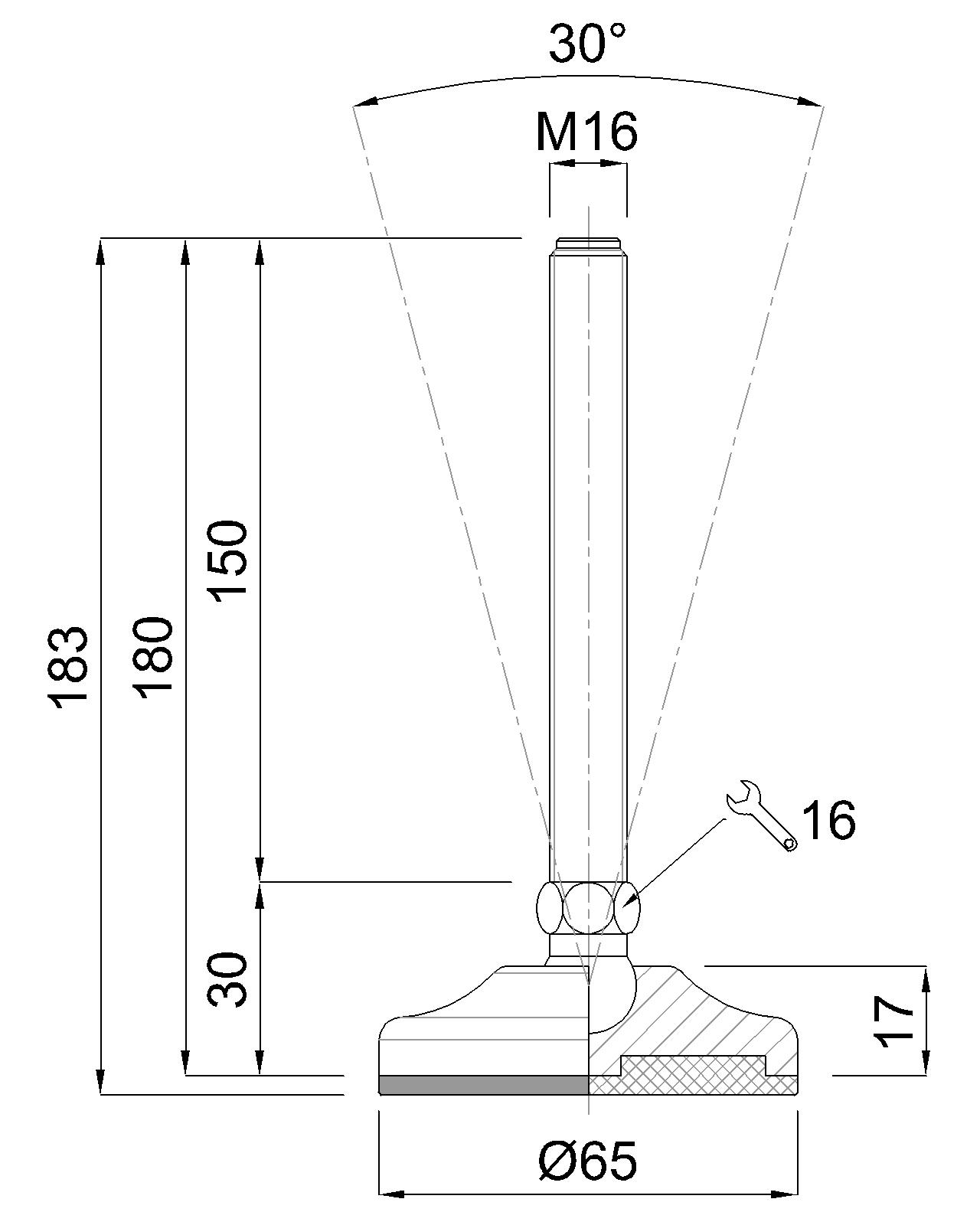

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
