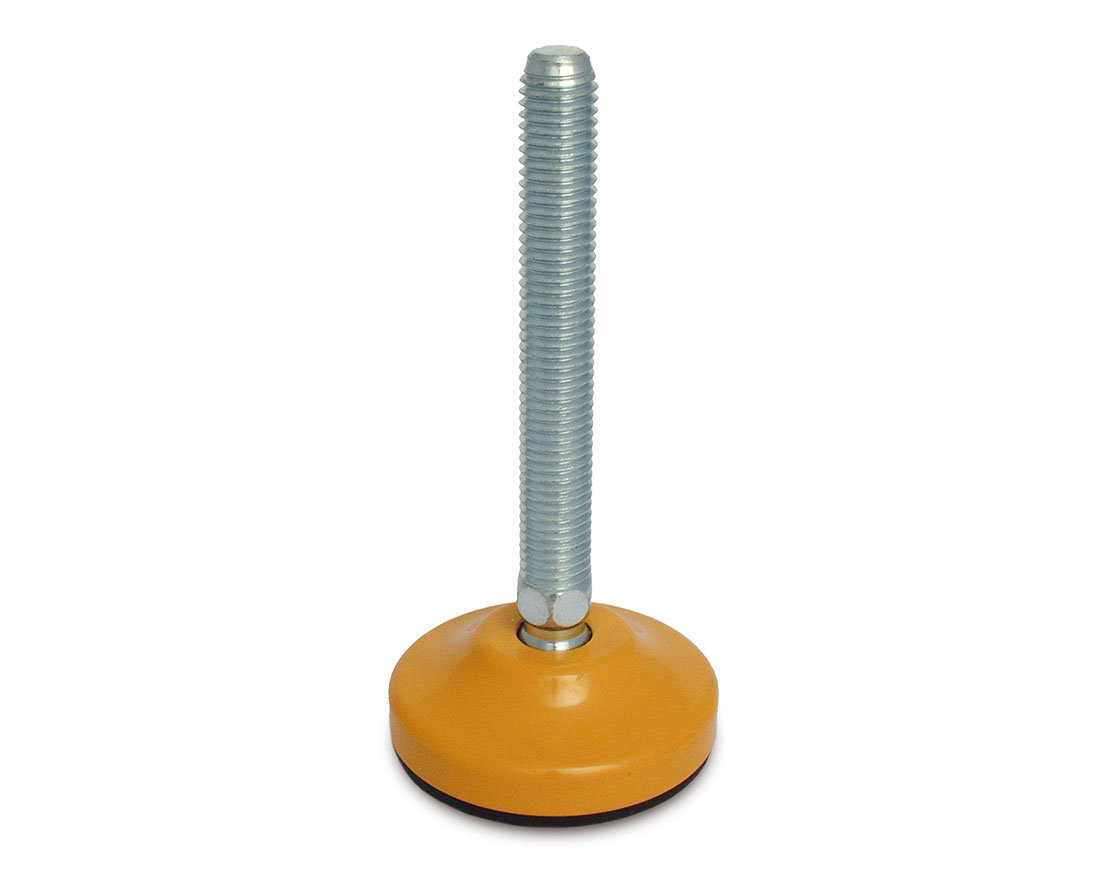

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 125 mm, yellow, NBR
EAN
4061408041169
Type
45810727
Discover the MASSIV Steel levelling foot, designed for robust applications with a 65 mm diameter and M16 x 125 mm thread. Featuring a 30° articulated screw, NBR black anti-slip, and a static load capacity of 20,000 N, it ensures stability and precision in any project.
| Quantity | Price |
|---|---|
| From 1 |
€11.63*
|
| From 5 |
€11.14*
|
| From 15 |
€10.79*
|
| From 50 |
€10.65*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

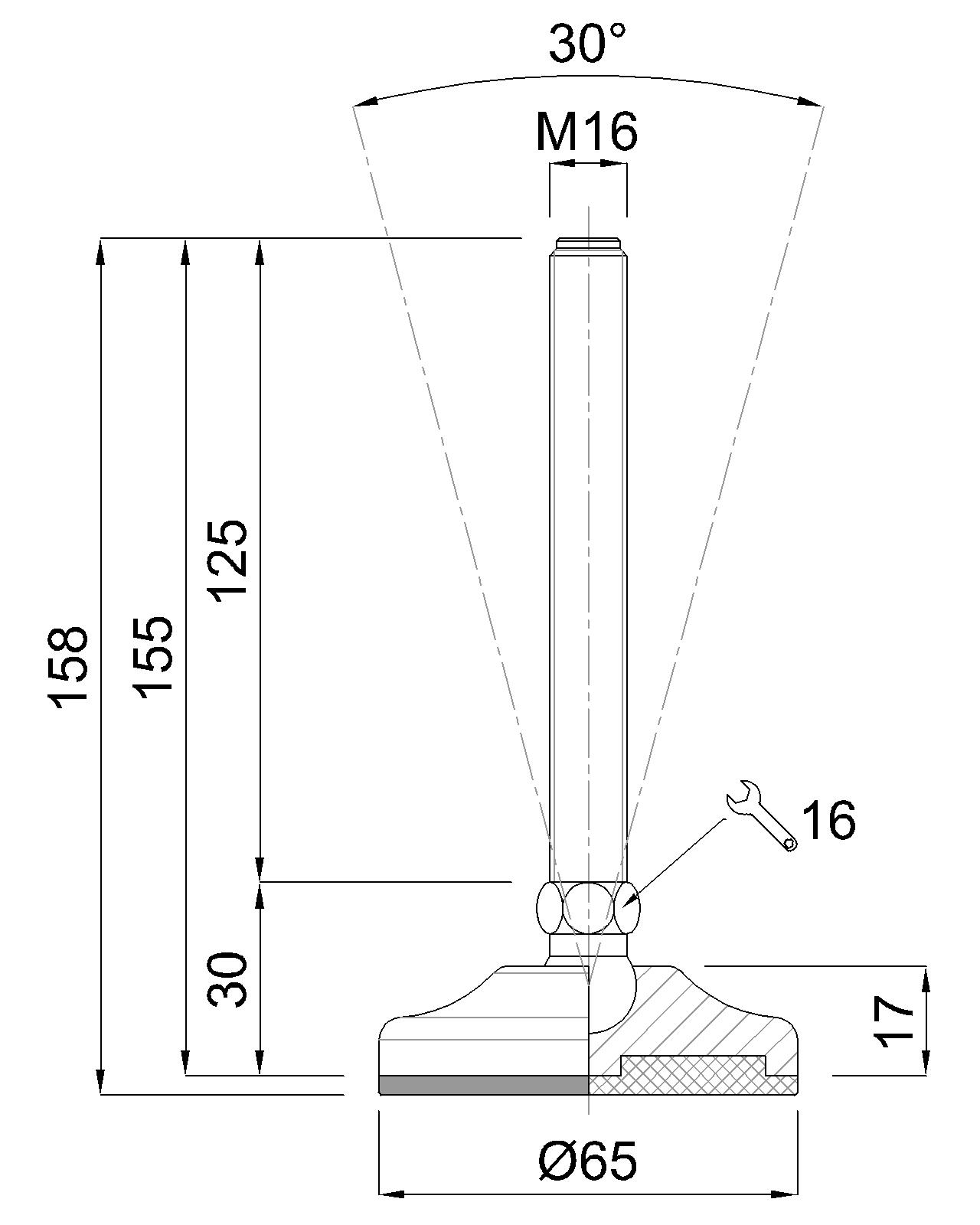

Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 125 mm, Galvanized steel, Total height 158 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
