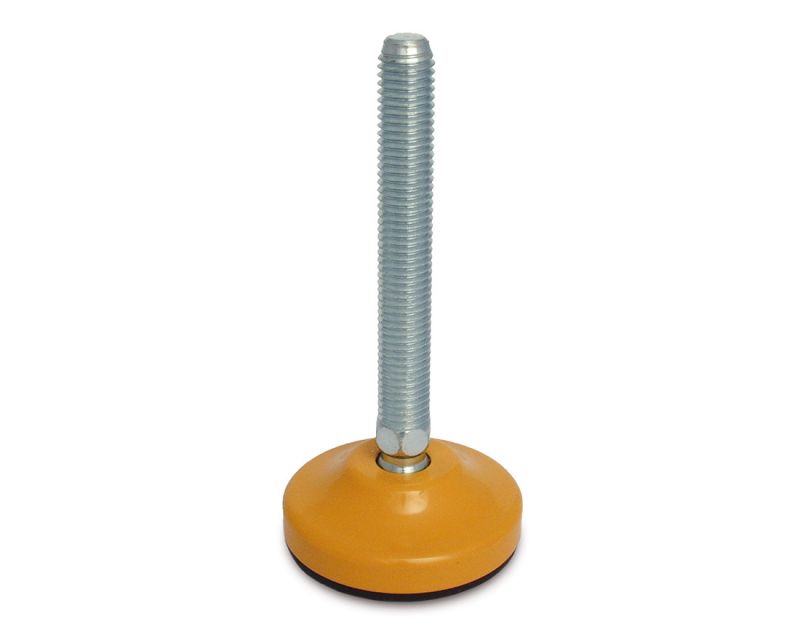

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, yellow, NBR
EAN
4061408041121
Type
45810721
Introducing the MASSIV Steel leveling foot: designed for precision with a 65 mm diameter and robust M16 x 50 mm thread. Features include a 30° articulated screw, anti-slip NBR, and a static load capacity of 20,000 N. Optimized for stability and reliability in demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.68*
|
| From 5 |
€10.22*
|
| From 15 |
€9.90*
|
| From 50 |
€9.77*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |

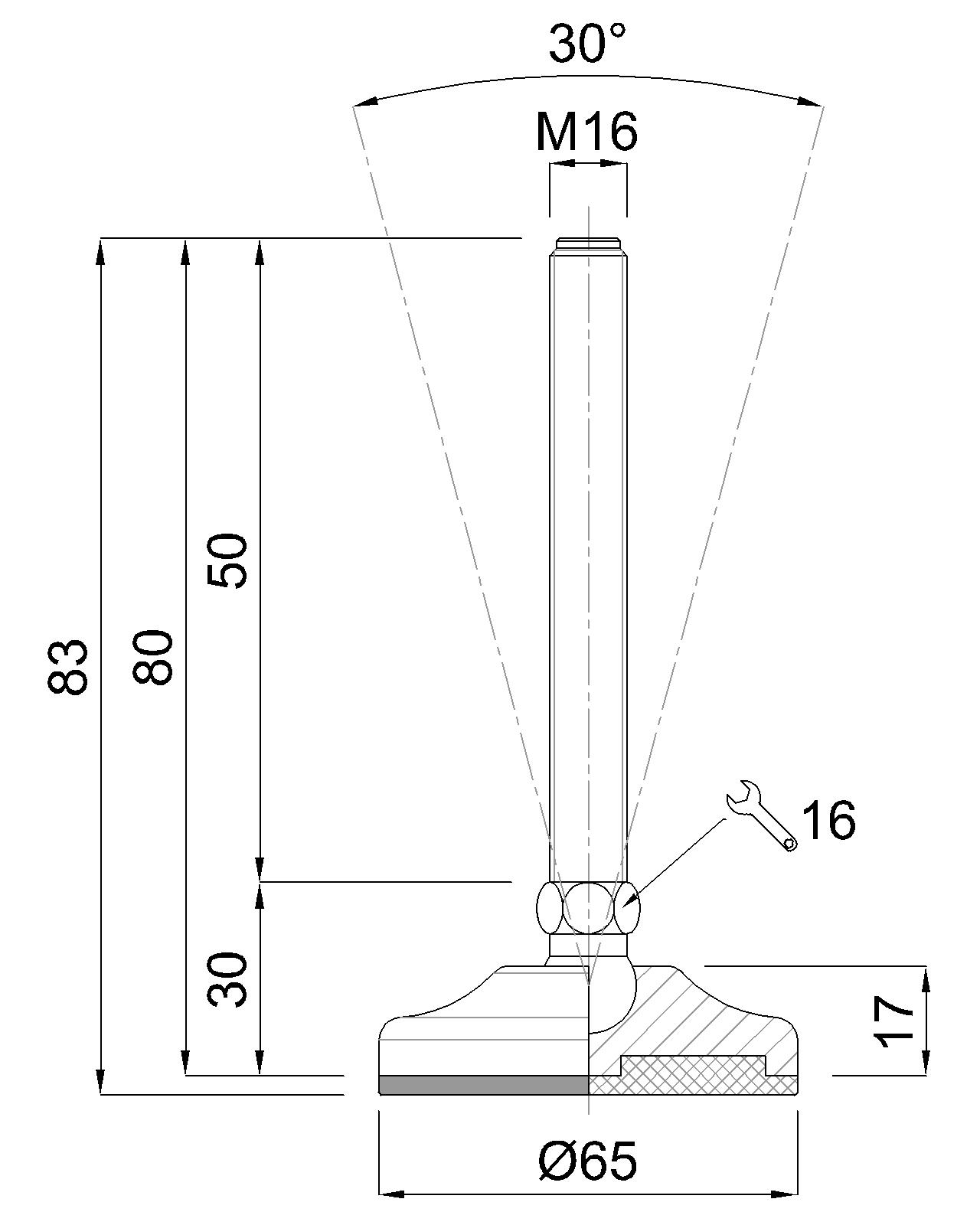

Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 50 mm, Galvanized steel, Total height 83 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
