Levelling foot MASSIV Steel, Ø 50 mm, M14 x 50 mm, yellow, NBR
EAN
4061408040957
Type
45810701
Discover the MASSIV Steel Levelling Foot, designed for maximum stability with a static load capacity of 15,000 N. The durable yellow-painted steel construction and NBR anti-slip feature ensure reliable performance in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.78*
|
| From 5 |
€8.41*
|
| From 15 |
€8.14*
|
| From 50 |
€8.03*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |

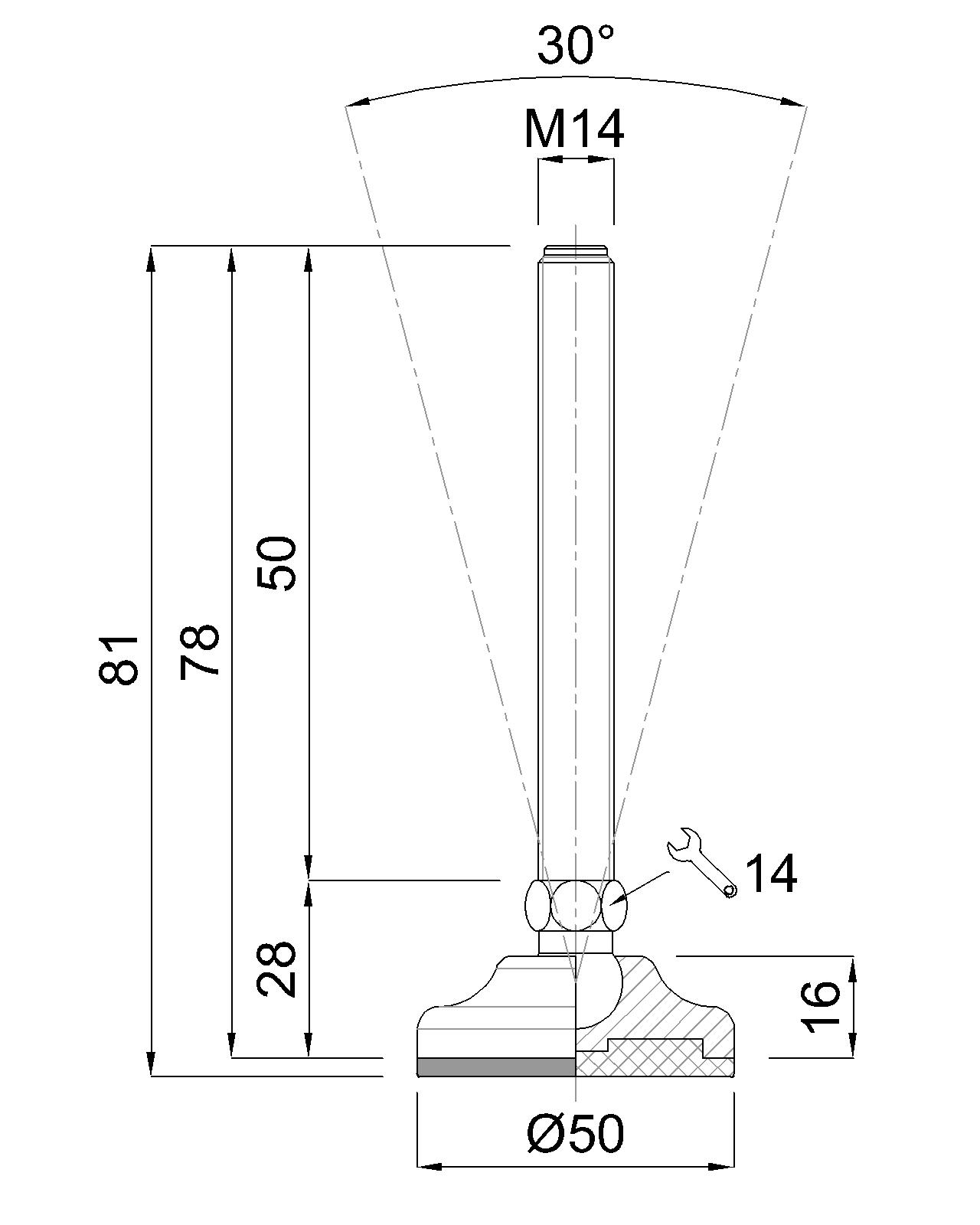

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M14 x 50 mm, Galvanized steel, Total height 81 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
