Levelling foot MASSIV Steel, Ø 50 mm, M14 x 25 mm, yellow
EAN
4061408040926
Type
45810698
Discover the MASSIV Steel leveling foot, designed for precision and stability. With a 50 mm diameter and a static load capacity of 15,000 N, it ensures robust support in any application.
| Quantity | Price |
|---|---|
| From 1 |
€7.89*
|
| From 5 |
€7.55*
|
| From 15 |
€7.31*
|
| From 50 |
€7.22*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |

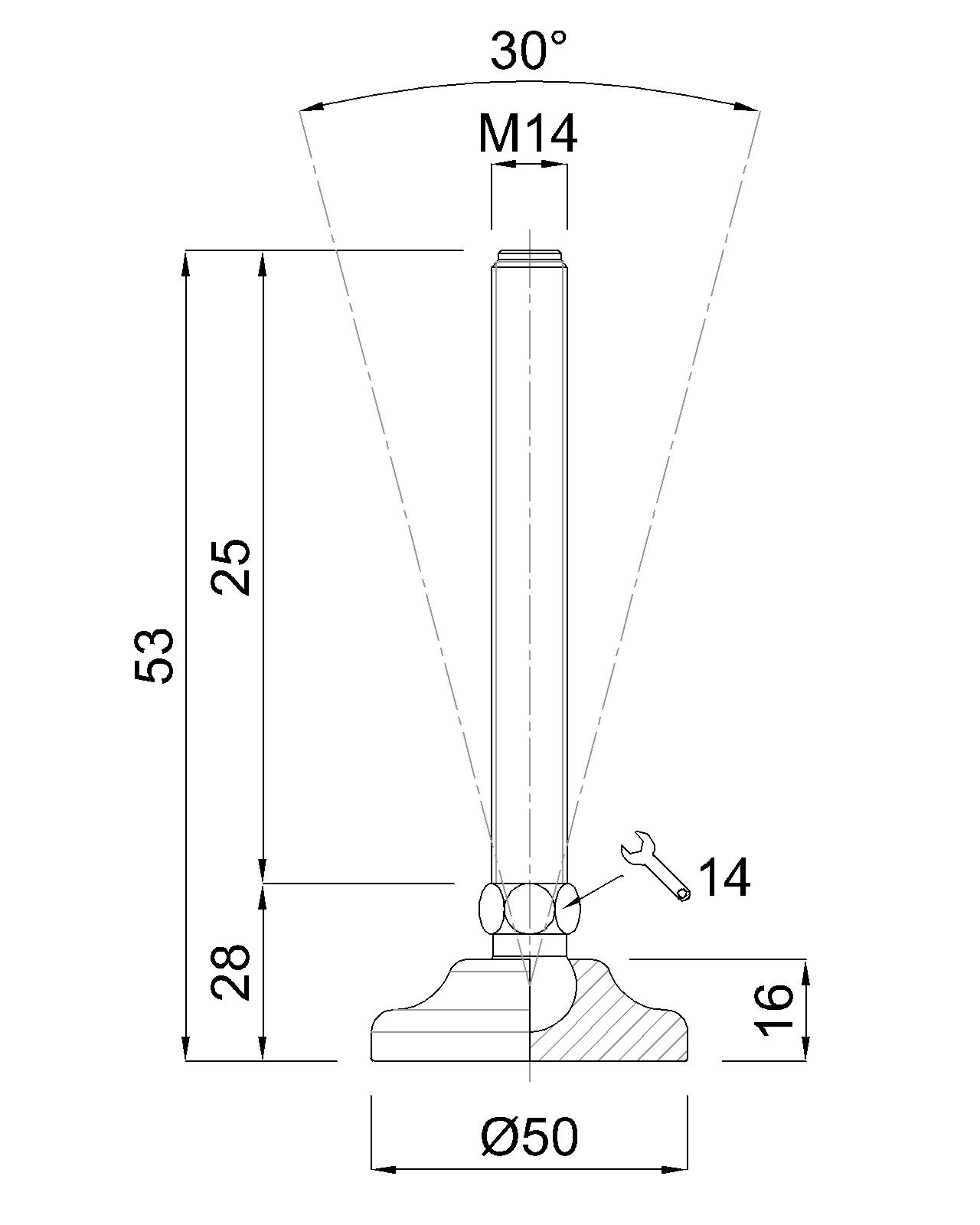

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M14 x 25 mm, Galvanized steel, Total height 53 mm, Articulated screw 30°, yellow painted, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
