Levelling foot MASSIV Steel, Ø 50 mm, M12 x 125 mm, yellow
EAN
4061408040919
Type
45810696
The MASSIV Steel Levelling Foot offers exceptional stability with a robust 50 mm diameter and a static load capacity of 15,000 N. Ideal for precise adjustments in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.16*
|
| From 5 |
€8.77*
|
| From 15 |
€8.49*
|
| From 50 |
€8.38*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

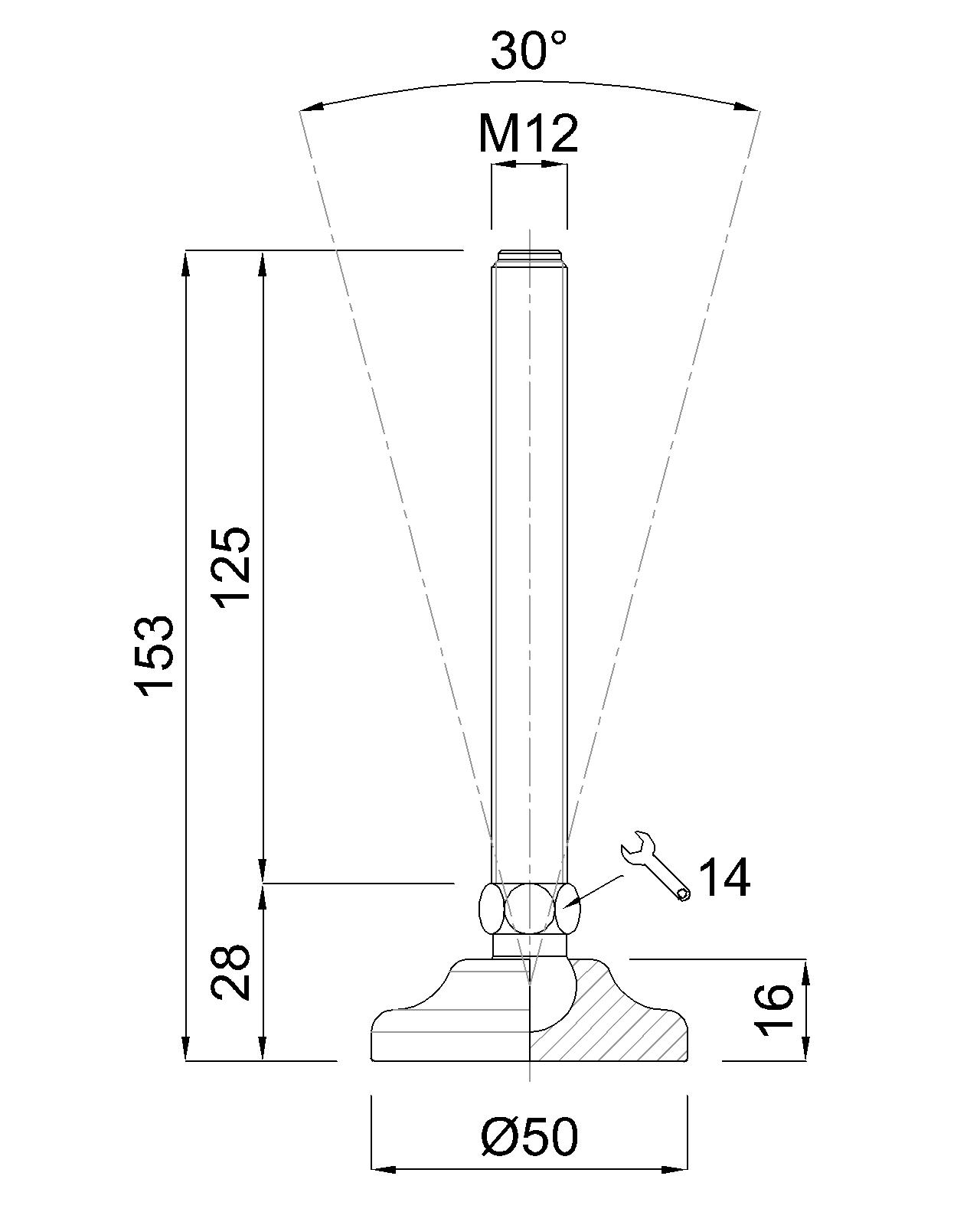

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M12 x 125 mm, Galvanized steel, Total height 153 mm, Articulated screw 30°, yellow painted, Static load 15.000 N
