Levelling foot MASSIV Steel, Ø 50 mm, M12 x 100 mm, yellow, NBR
EAN
4061408040902
Type
45810695
Discover the MASSIV Steel leveling foot, featuring a robust design with a 50 mm diameter and M12 x 100 mm thread, capable of supporting static loads up to 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€9.36*
|
| From 5 |
€8.96*
|
| From 15 |
€8.68*
|
| From 50 |
€8.56*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

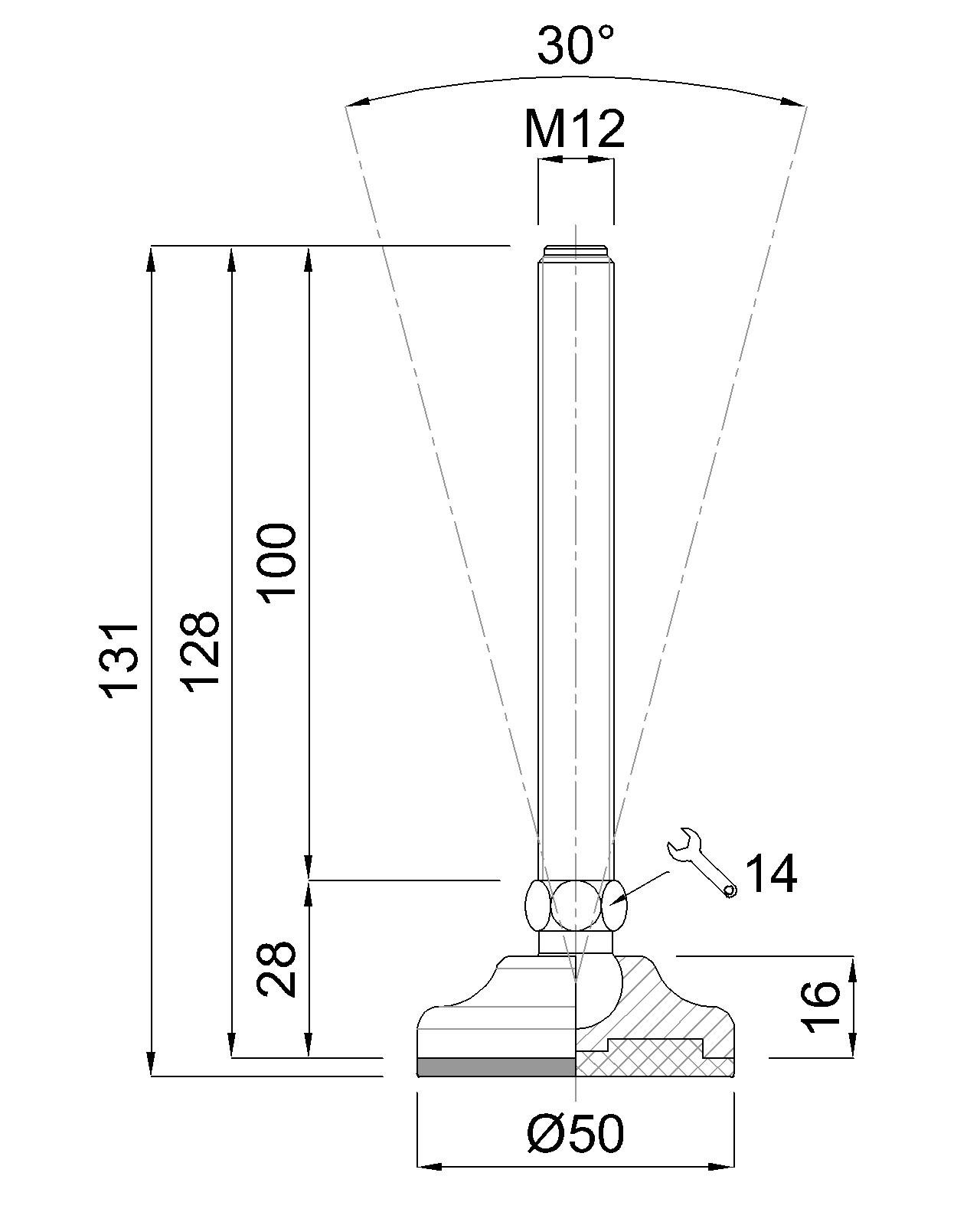

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M12 x 100 mm, Galvanized steel, Total height 131 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
