Levelling foot MASSIV Steel, Ø 50 mm, M12 x 75 mm, yellow
EAN
4061408040889
Type
45810692
Elevate your machinery with our MASSIV Steel Levelling Foot, designed for stability and precision. With a static load capacity of 15,000 N, it ensures robust support for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.66*
|
| From 5 |
€8.30*
|
| From 15 |
€8.03*
|
| From 50 |
€7.93*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

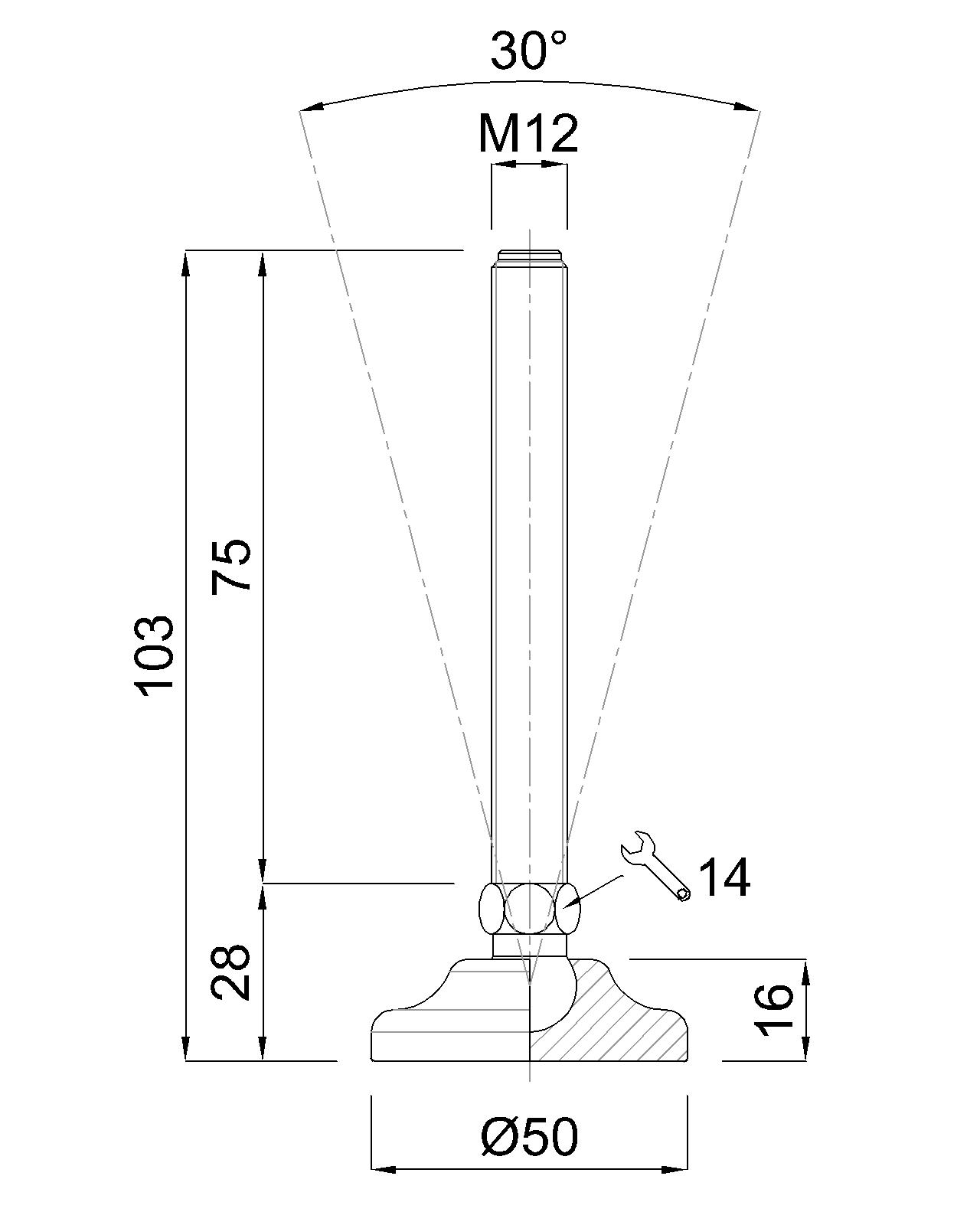

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M12 x 75 mm, Galvanized steel, Total height 103 mm, Articulated screw 30°, yellow painted, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
