Levelling foot MASSIV Steel, Ø 50 mm, M12 x 25 mm, yellow, NBR
EAN
4061408040858
Type
45810689
Discover the MASSIV Steel Levelling Foot, designed for exceptional stability and load-bearing with a static capacity of 15,000 N. Features a durable galvanized steel construction, anti-slip NBR base, and versatile 30° articulation for precise leveling.
| Quantity | Price |
|---|---|
| From 1 |
€8.25*
|
| From 5 |
€7.90*
|
| From 15 |
€7.65*
|
| From 50 |
€7.55*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |

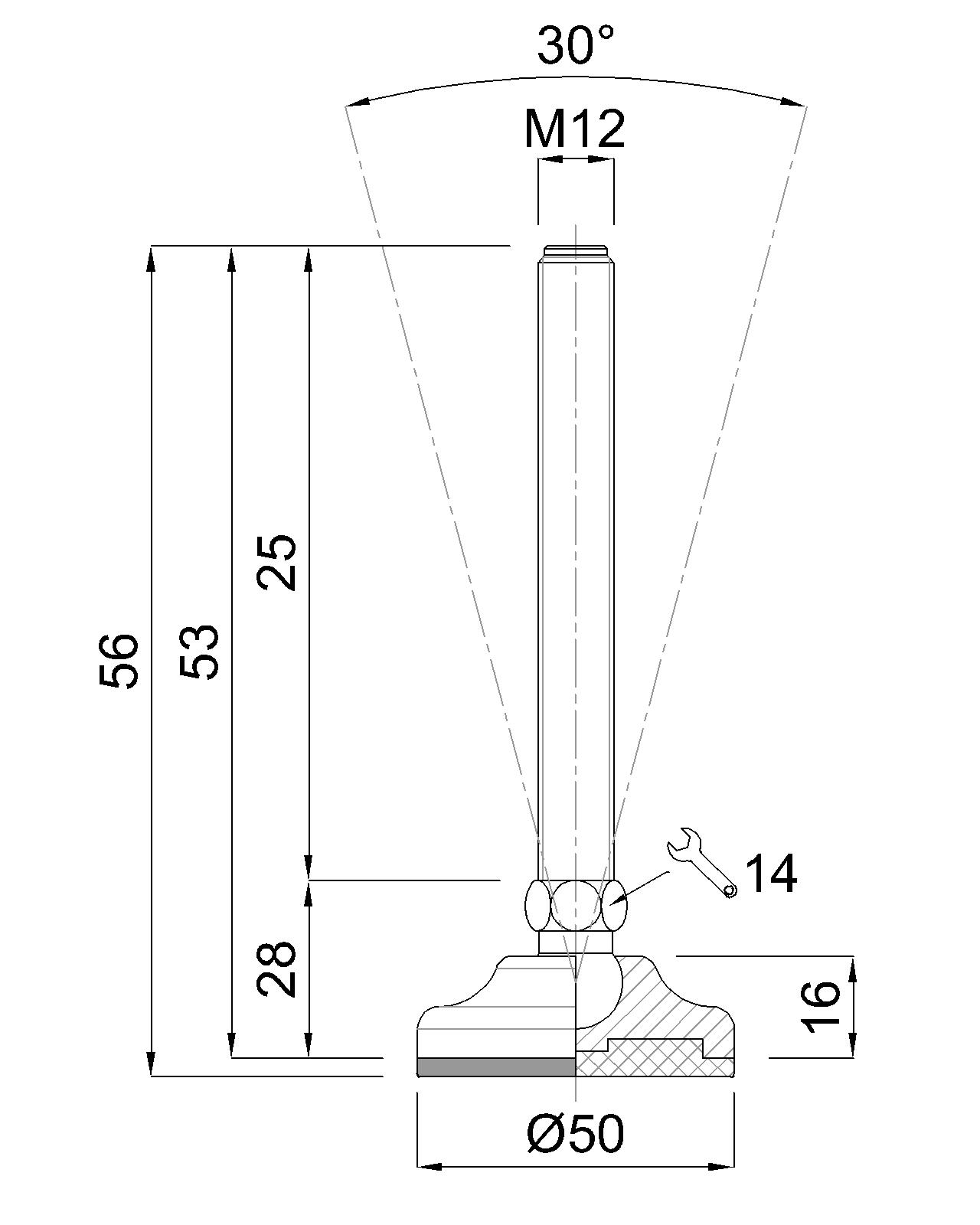

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M12 x 25 mm, Galvanized steel, Total height 56 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
