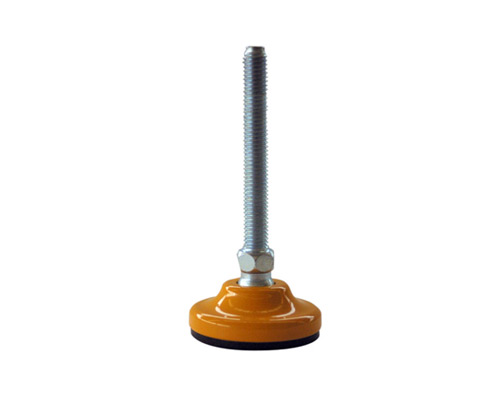

Levelling foot MASSIV Steel, Ø 50 mm, M10 x 125 mm, yellow
The MASSIV Steel Leveling Foot features a robust design with a 50 mm diameter and M10 x 125 mm thread, supporting static loads up to 15,000 N. Ideal for precise leveling applications, it offers versatility with a 30° articulated screw and durable yellow finish.
| Quantity | Price |
|---|---|
| From 1 |
€9.16*
|
| From 5 |
€8.77*
|
| From 15 |
€8.49*
|
| From 50 |
€8.38*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

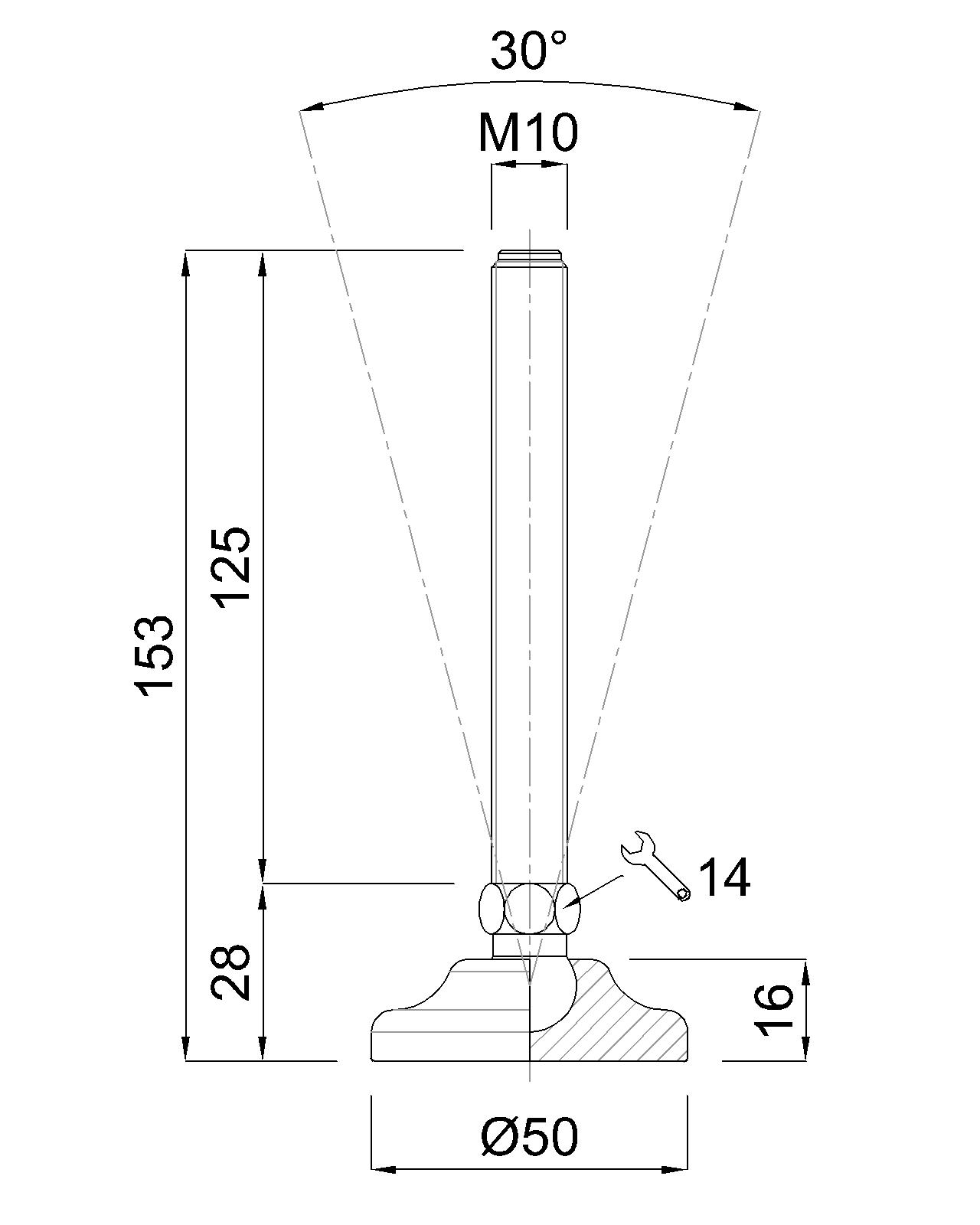

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
