Levelling foot MASSIV Steel, Ø 50 mm, M10 x 50 mm, yellow
EAN
4061408040773
Type
45810680
The MASSIV Steel levelling foot features a robust design with a 50 mm diameter and M10 x 50 mm spindle, supporting static loads up to 15,000 N. Its articulated screw allows for a 30° adjustment, enhancing stability in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.42*
|
| From 5 |
€8.06*
|
| From 15 |
€7.80*
|
| From 50 |
€7.70*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
| Hygiene: | No |

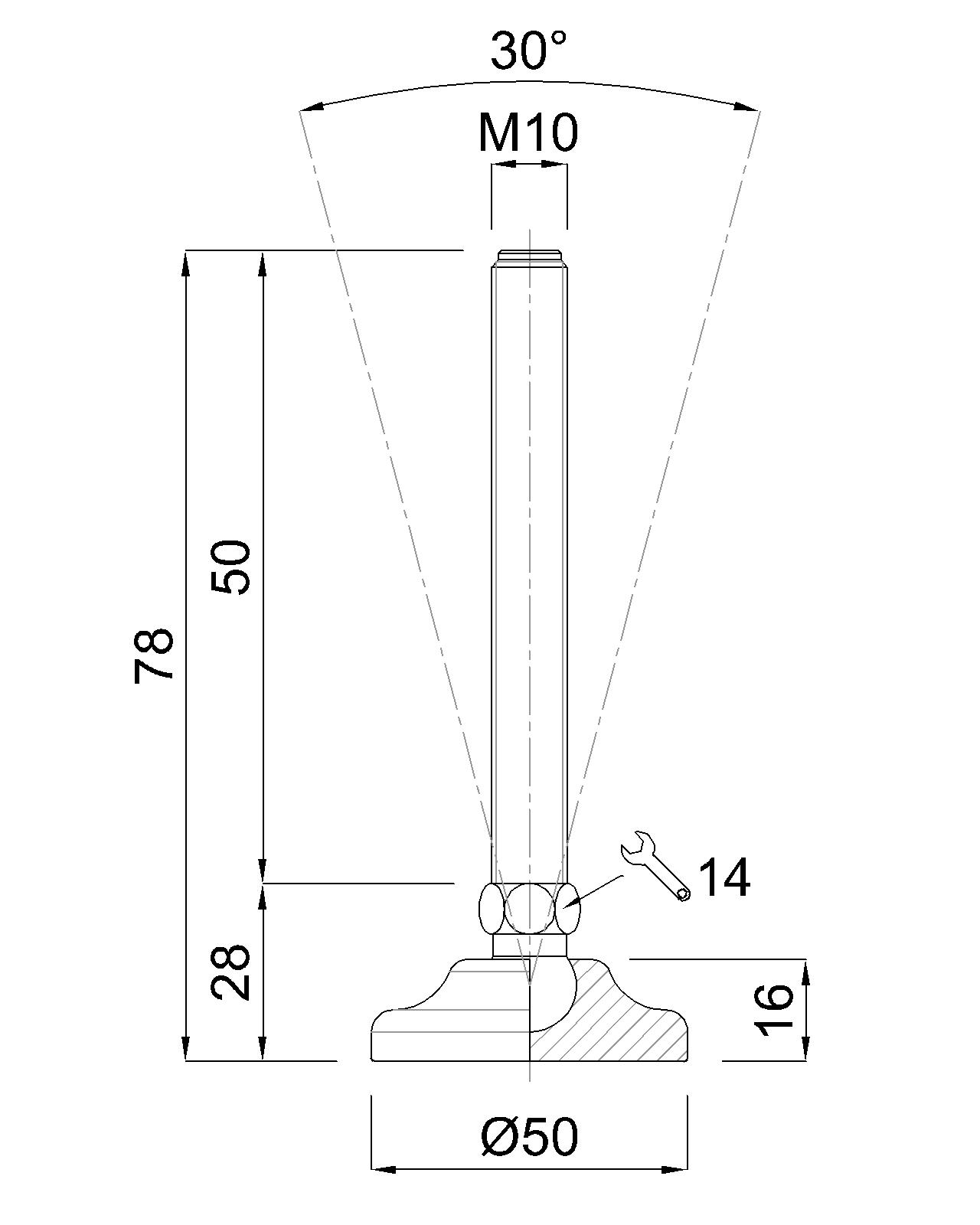

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M10 x 50 mm, Galvanized steel, Total height 78 mm, Articulated screw 30°, yellow painted, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
